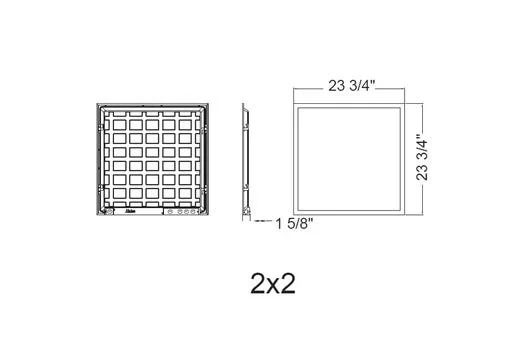

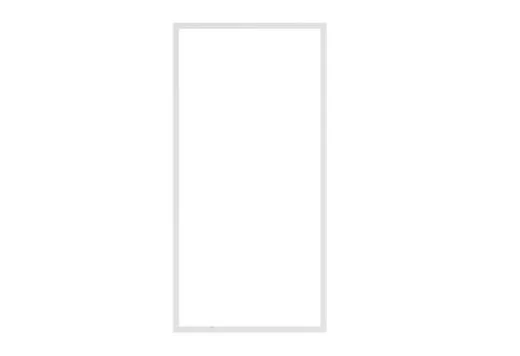

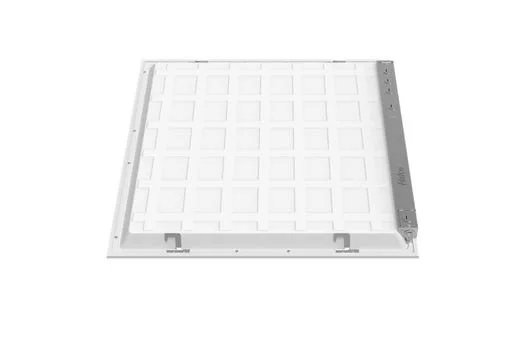

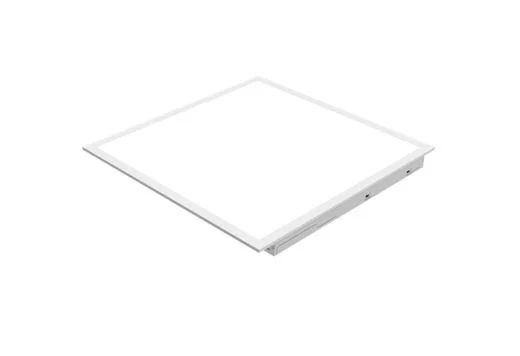

2×2 Flat Panel, Lumen Selectable, CCT Selectable, UNV 120-277V 0-10V Dimmable

The Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail applications.

Key Features and Benefits

• Select from 3500K, 4000K, or 5000K CCT
• Select from three lumen output levels
• 0-10V Dimming to 10%
• Steel housing with aluminum frame
• Field selectable CCT and lumen output switch

Specifications

• 120-277V, 50/60 Hz
• 80 CRI
• L70 Lumen maintenance > 50,000 hours
• 5 year limited warranty
• cETLus rated for damp locations
• IC Rated for direct contact with insulation
• DLC Premium listed
• RoHS compliant
• FCC part 15 compliant
• TAA compliant

Common Uses

Ideal for educational, commercial, and retail applications.
