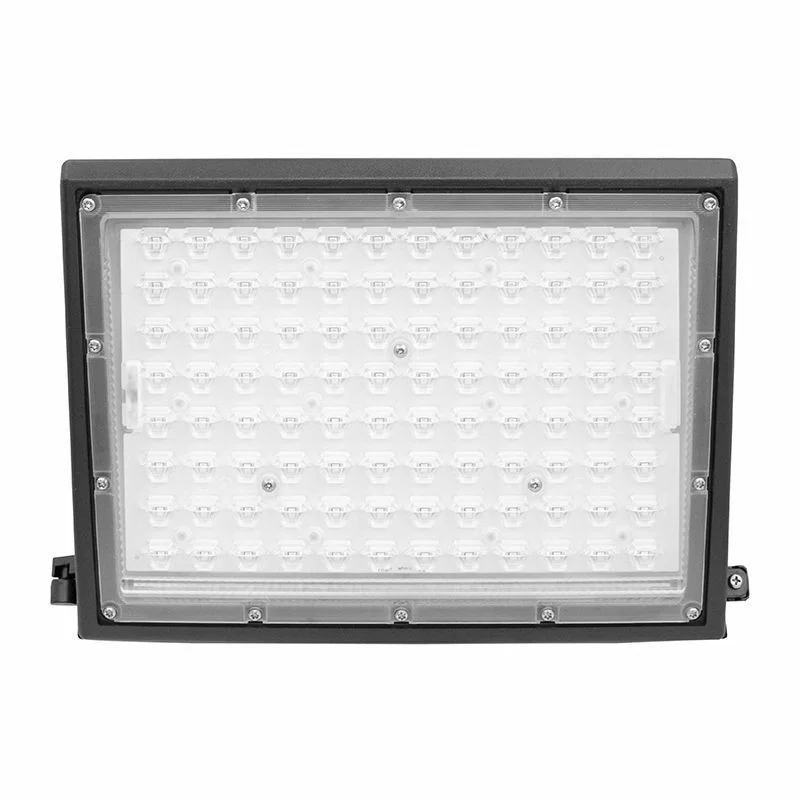

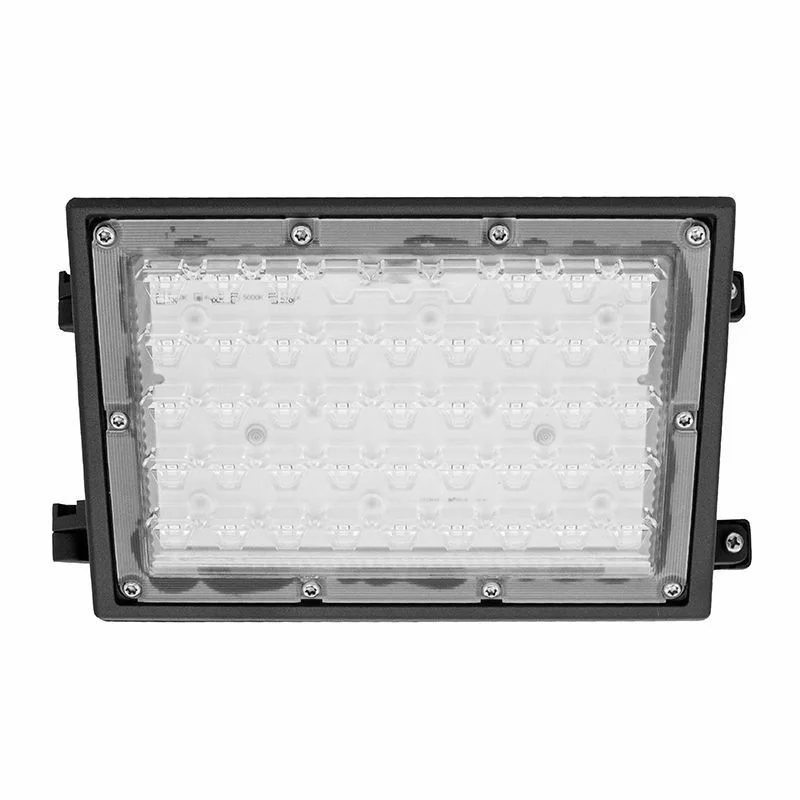

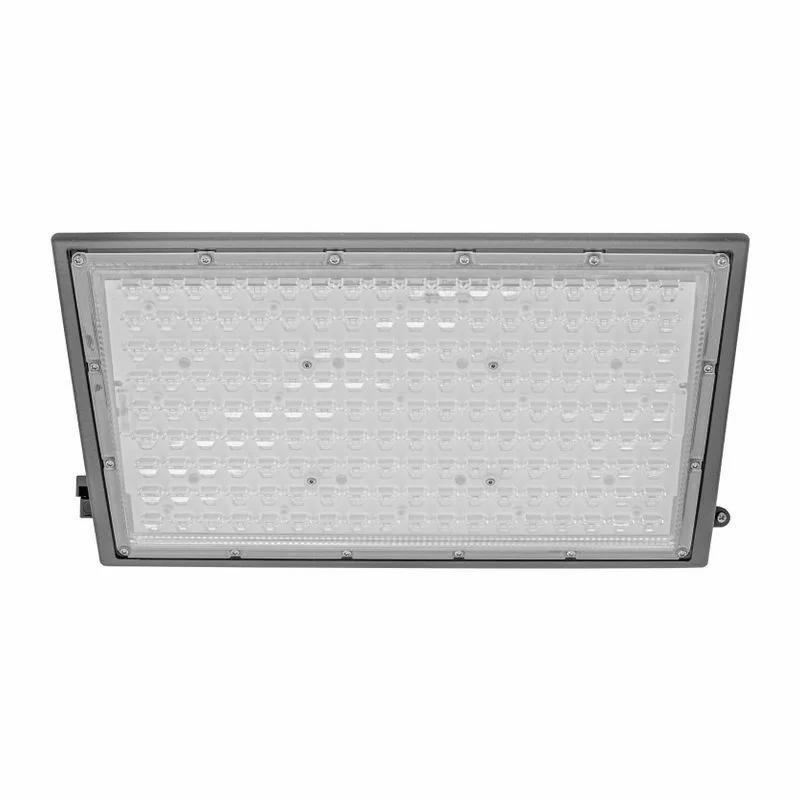

Versatile LED Non-Cutoff Wall Pack 2nd Generation
Ideal for brightening general site lighting, alleys, loading docks, doorways, pathways, and parking areas, the LED Non-Cutoff Wall Pack 2nd Generation combines robust design with energy-efficient performance. Tailored to match the same footprint as traditional HID wall packs, this LED wall pack is perfect for both new installations and upgrading existing fixtures.
ELECTRICAL SPECIFICATIONS
- Voltage: 120~277 VAC / 60 Hz
- Wattage: Available in 28W-120W
- Power factor: 0.95 for consistent performance
- Efficacy: Remarkable 121 LM/W for superior brightness
ROBUST HOUSING FEATURES
- Durable die-cast aluminum housing for longevity
- Powder-coated finish in Dark Bronze to withstand the elements
- Includes comprehensive mounting hardware for easy installation
- Configured with four 1/2” hubs: one at the top, one on each side, and one at the rear
- Wide operating temperature range from -40°F to 104°F
- Lifespan: Impressive 70,000 hours
- IP Rating: IP65 ensures protection against dust and water
LIGHTING SPECIFICATIONS
- Equipped with Philips Lumileds LEDs
- 0-10V dimmable for adjustable brightness
- Available color temperatures: 5000K (daylight), 4000K (cool white), 3000K (warm white)
- Optic Lens: Polycarbonate ensures uniform light distribution
- Color Rendering Index (CRI): >80 for vivid, natural light
CERTIFICATIONS
UL and DLC certified for quality assurance
PEACE OF MIND WARRANTY
Backed by a 7-year warranty for reliability and long-term satisfaction.
