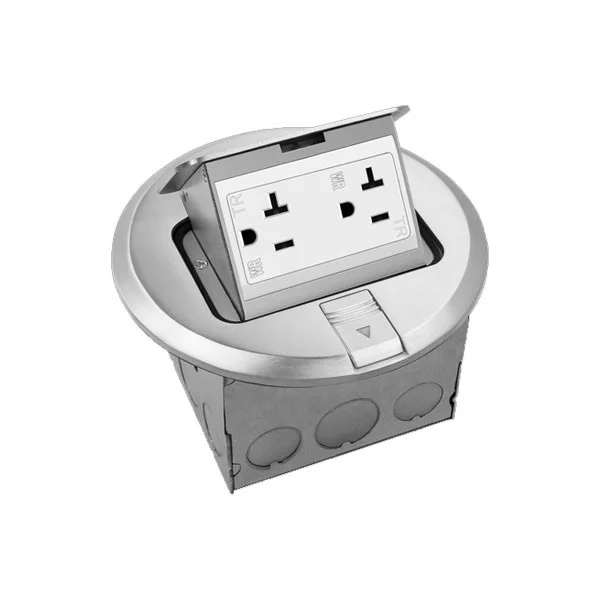

20A Round Pop-up Floor Box Assembly – Tamper Weather Resistant

20A round pop-up floor box assembly – tamper weather resistant, availablle in brass or nickel-plated brass cover material, for use with carpet and wood floors, also great for counter-top applications, 2 years limited warranty.
Minimum order qty. of 10 pcs.
DESCRIPTION
The Pop-up Floor Box Assembly offer three configuration with 20A Decorator Duplex T&WR, USB, or GFCI Receptacle. These are used for carpet and wood floors. Pop-up covers provide easy access to power and can be snapped closed when not in use. Kit assembly includes a metal floor box, choice of T&WR, USB, or GFCI receptacle.
FEATURES

20A 125V Decorator Duplex Tamper & Weather Resistant Receptacles.
20A 125V USB Receptacle with 2.1Amp total
20A 125V GFCI.
Easy connection wiring accepts #12-10 AWG stranded and solid copper wire.
For use with carpet and wood floors. Also great for counter-top applications.
Steel floor box must be flush with sub-wood or carpeted floor.

TESTING & CODE COMPLIANCE

2011 NEC Article 406.12 for tamper-resistant receptacles.
2011 NEC Article 314.27 for floor boxes.
All receptacles are UL listed.

SPECIFICATIONS
COVER

Cover Material: Brass(C) or Nickel-Plated Brass(S)
Cover Type: Round

COVER SIZE
961501: 6” Dia. (150mm)Receptacle Rating: 20A 125VAC                            20A USB 2.1Amp Total                            20A GFCI
BOX

Box Type: FB-09 1-Gang Box (4”x4”x3”)
Box Material: Pre-Galvanized Steel
Knockout Size: ½” and ¾”
Adjustable Height: Up to 1” depth
Warranty: 2 Years
