The Energy Light QS20A6RT156 is a durable 20′ round tapered aluminum light pole engineered for commercial outdoor lighting installations. Built from seamless 6063 series aluminum alloy, it provides dependable structural performance while maintaining a clean architectural appearance. This pole is a practical choice in Energy Light’s lineup for parking lots, pathways, and general site lighting projects.
Key Features and Benefits
- Corrosion-resistant brushed natural aluminum finish for long-term outdoor durability

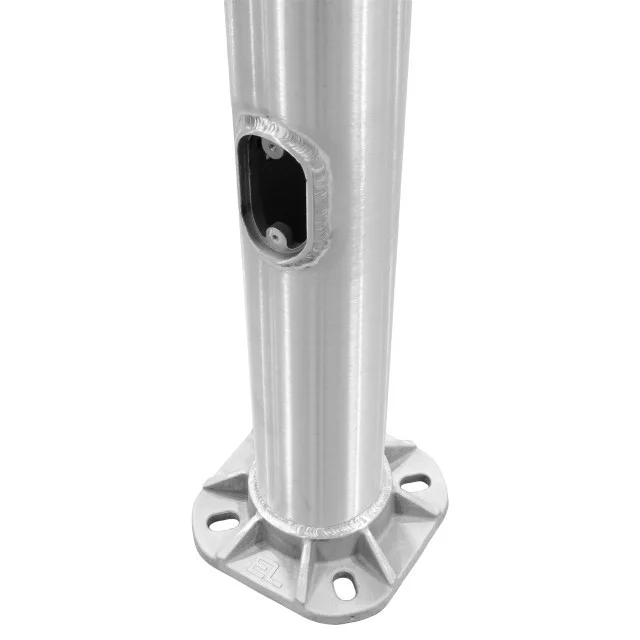

- Heavy-duty 4-bolt cast aluminum base flange with bolt covers for a secure, finished installation
- Includes galvanized anchor bolt kit with hardware for simplified field setup
- Reinforced handhole with cover and integrated ground lug supports safe wiring access
- Backed by a 5-year manufacturer warranty
Specifications
- Pole Height: 20′
- Pole Type: Round tapered aluminum shaft
- Wall Thickness: 0.156″
- Bottom Diameter: 6″
- Top Diameter: 4.5″
- Handhole Size: 3″x5″
- Handhole Height Above Grade: 18″
- Bolt Circle Range: 9″-10″ (9.5″ shown)
- Base Footprint: 10.00″ square
- Anchor Bolt Size: 3/4″x30″x3″
- Bolt Projection: 2.75″
- Pole Weight: 76 lbs
- Max Allowable EPA at 115 mph: 8.9 ft²
Common Uses
Ideal for parking areas, commercial campuses, pedestrian walkways, municipal streetscapes, and other outdoor applications requiring a robust pole foundation and clean tapered profile.
