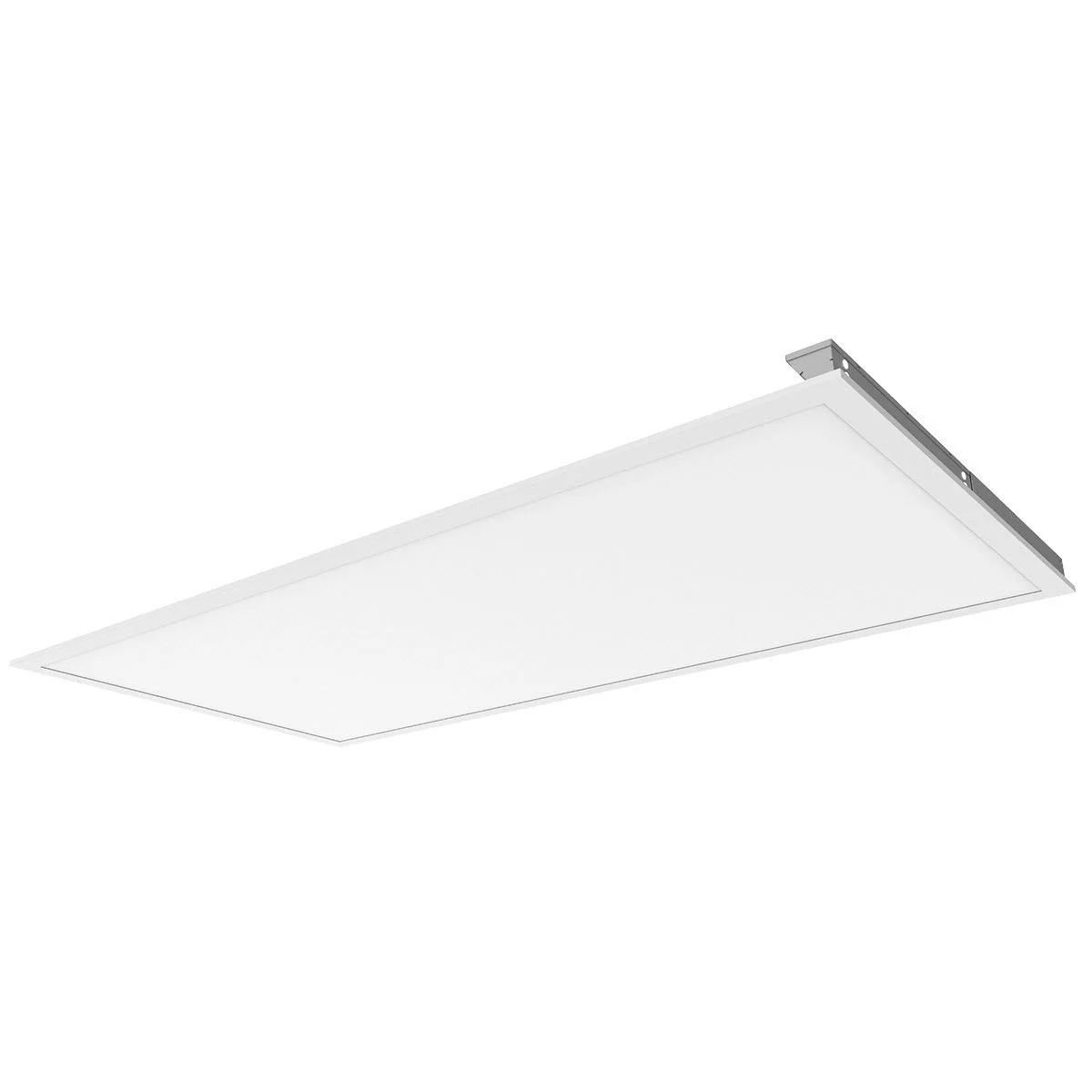

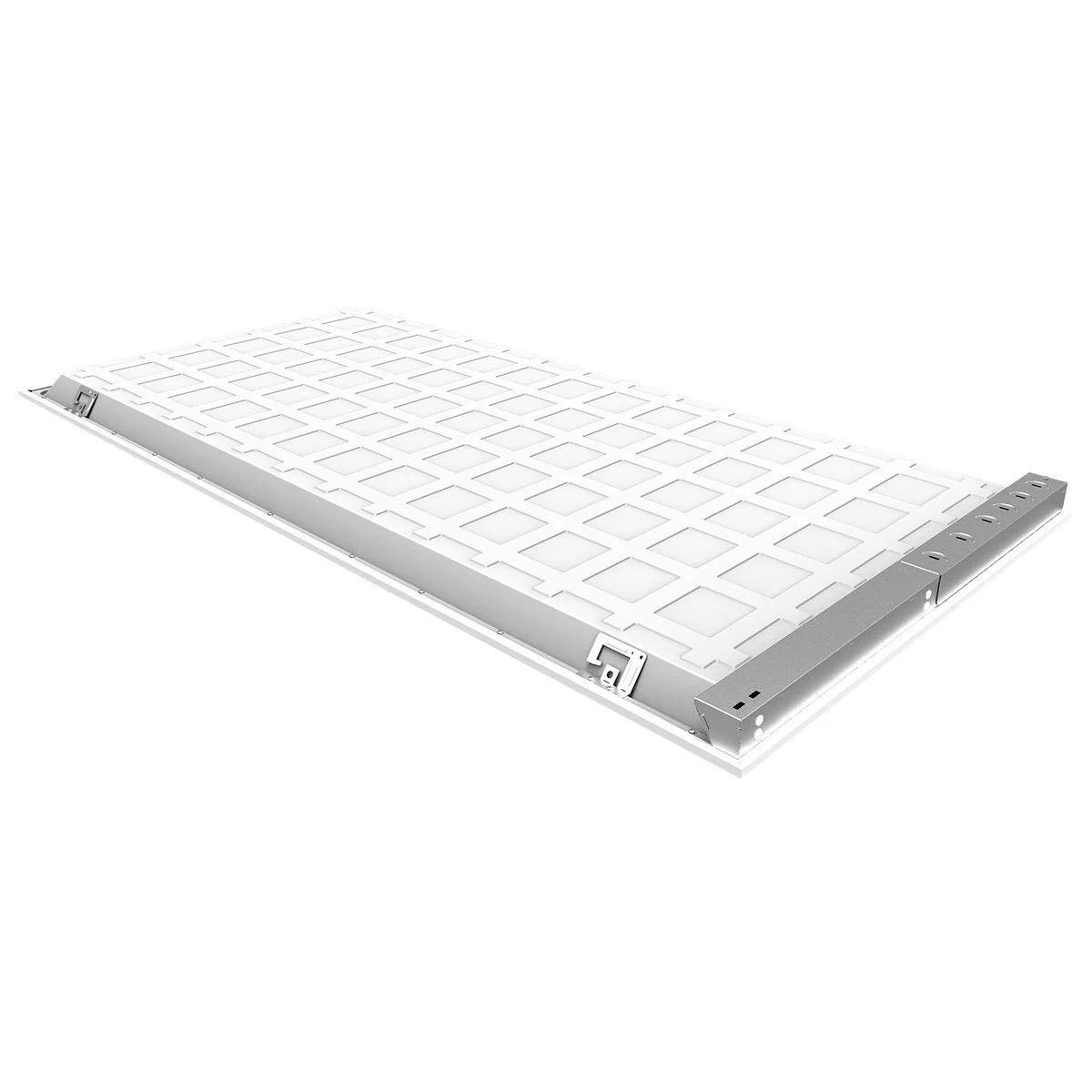

2’X4′ Backlit LED Panel, 30W-40W Power and CCT Adjustable

CONSTRUCTION

Steel and Aluminum frame. PMMA lens material to prevent panel from yellowing. The entire fixture functions as a heat sink to keep the LEDs cooler to prolong the life of the light.

OPTICAL SYSTEM

Samsung 2835 LED chips. 120° beam angle.

WARRANTY

5-year limited warranty. Actual performance may differ as a result of end-user environment and application.

ELECTRICAL

120-277V input standard. -20°C to 50°C, -4°F to 122°F

INSTALLATION & MOUNTING

Fits standard T-bar and narrow grid drop ceilings. Surface mount kit, recessed kit or suspension mount.

CONTROLS & DIMMING

0-10V dimming comes standard. Suitable for use with LED dimmers

FEATURES

• Multi Watt Models Only:
  • Default Wattage is the highest wattage
    ▪ 150W
    ▪ 250W
  • Default CCT: 5,000K
• IP66 rated
• SPD 6KV
• 8-foot cord (120-277V models only)
• Corrosion resistant
• Easy installation and maintenance
• 50,000 hours lifetime

SUITABLE APPLICATIONS

• Warehouses
• Schools
• Factories
• Offices
• Supermarkets
• Logistic Centers
• Exhibition Halls
