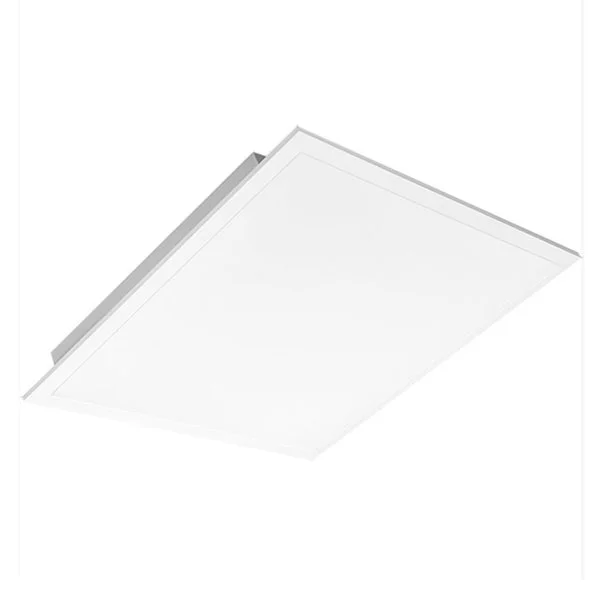

2’x2′ Dimmable LED Backlit Panel, 20W-35W Power & CCT Adjustable

2’x2′ dimmable LED backlit panel, 20-35 watts power selectable, 2,500-4,375 lumens, available in 3000K/ 3500K/ 3500K/ 4000K/ 5000K CCT adjustable, white framed edge, up to 50,000 hours rated life, 5 years limited warranty.
APPLICATIONS

Ceiling, T-Bar Ceiling
Troffer Replacement

FEATURES

Instant On LED
Multi Watt Adjustable Switch
Mutli CCT Color Adjustable
Smooth Evenly Distributing Light Lens
Replaces 2&2 Lamp Fluorescent Troffer
Junction Box for Easy Connection
10% 0-10V Dimming
Long Life 50,000 Hours
White Framed Edge
Surface Mount Frame Kit Available Sold Separately

ACCESSORIES

Surface Mounting Frame Kit

SPECIFICATIONS

Input Line Voltage: 120-277VAC
Input Power: 20/25/30/35W
Input Line Frequency: 60Hz
Lamp Life (Rated): 50,000hrs
Minimum Starting Temp: -20°C
Maximum Operating Temp: 40°C
CCT: 3000K/3500K/4000K/5000K
CRI: ≥80
Lumens: 2500//3125/3750/4375
Power Factor: 0.90
THD: ≥15%
Dimmable: 10% 0-10V
