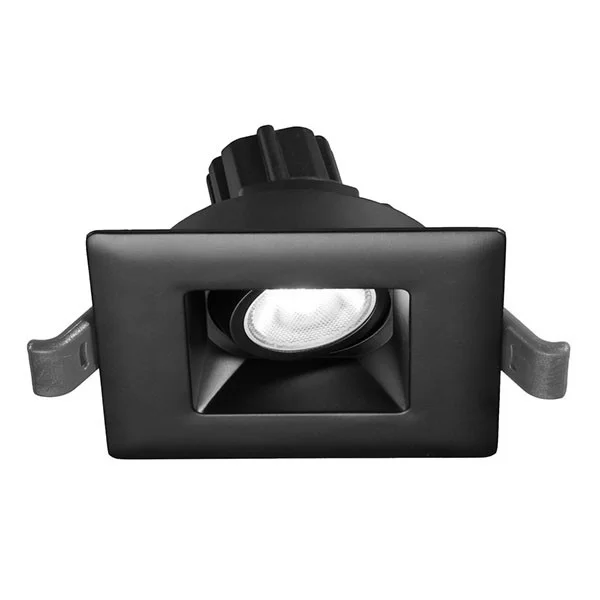

2-Inch Square 5 W Regressed LED Gimbal

2-inch square LED regressed gimbal, 5 watts, 380-430 lumens, available in 2700K, 3000K, 4100K color temperature (CCT), white or black finish, up to 50,000 hours rated life, suitable insulated ceiling & wet locations, 10 year warranty residential/5 year warranty commercial.
DESCRIPTION
2″ Eyeball Round Recessed Gimbal LED with Integral Driver in Connection Box Enique & Patented Design: Gimbal Yet Air-Tight Without Housing Needed.
FEATURES & BENEFITS

1 3/4″ Deep Install Where Ceiling Space Is Limited
Type IC rated – No Housing Required
Fast & Easy To Install – Save On Labor
Driver Inside Connection Box – No Junction Box Needed
Directional Beam – Great for Sloped Ceilings and Artwork
CRI 90+ for True Color Rendering

MOUNTING

Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring ClipsCeiling Clearance Required:
1 1/2″ With Driver Remotely Installed
5″ When Driver Is Next To The Fixture

SPECIFICATIONS

Applications: Cabinets, Recessed Alcoves, Slopped Ceilings
Energy Used: 5 W
Color Temperature: 2700K, 3000K, 4100K
Light Output: 380lm, 400lm, 430lm
Beam Angle: 24° Beam with 20° tilt and 360° rotation
CRI: 90+
Default Driver Input: 120V AC Triac Dimmable
Option Driver Input: 120V-347V AC 0-10V Dimmable
Power Factor: 0.95
Junction Box Wire Capacity: Maximum of 3 No 12 AWG
Approved Location: Insulated Ceiling & Wet Locations
IP Rating: IP 54
Air Tight: Yes
Ambient Temperature: -40°F(-40°C)to+104°F(+40°C)
Projeceted Life: 70% Light Output at 50,000 Hours
Certification: cULus Energy Star T24
Warranty: 10 Year Residential / 5 Year Commercial
