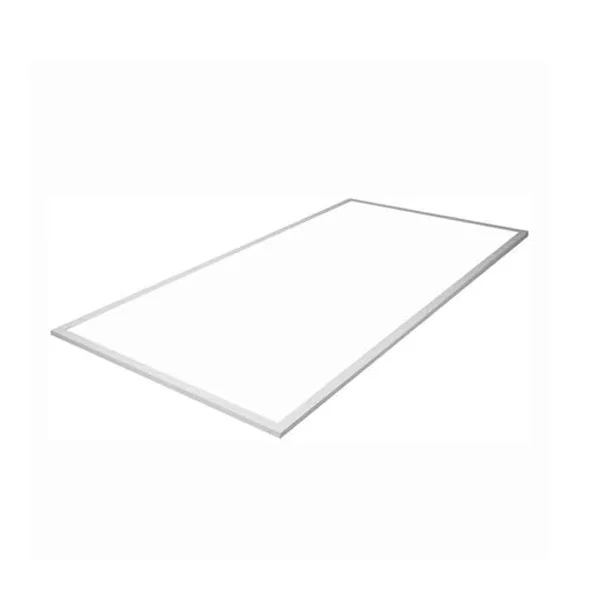

1X4 ProLED Edgelit Flat Panel, 25W-40W Power and CCT Adjustable

1X4 ProLED Edgelit Flat Panel, 25W/30W/40W power selectable, 2,500-4,000 lumens, available in 3500K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, suitable for damp location, 5 years limited warranty.
Halco’s ProLED Select EdgeLit Panel is the ideal solution where lighting preferences vary from space to space. The EdgeLit Panel Series is Field Selectable, allowing the installer to select both the preferred light output and color temperature (via DIP Switch) on the product driver box. The benefit of this is that one luminaire can replace 9 SKUs of our regular EdgeLit Panels. Fewer luminaires means less inventory and more efficient job site. At Halco, we only use the highest quality material in our EdgeLit Panel Series design, eliminating the need to worry about yellowing, glare, or drooping after the product is installed. When applications like Healthcare facilities call for multiple lumen packages and color temperatures, the ProLED Select EdgeLit Panel Series is the ideal solution to simplify BOMs and increase customer satisfaction.

Selectable Color Temperature: 3500K, 4000K, 5000K
Selectable Light Output via Driver DIP Switch
0-10V Dimming Standard
Emergency Back-Up Options
5-Year Warranty
Low Glare Rating

APPLICATIONS

Office
Retail
Healthcare
Education
Hospitality

PERFORMANCE

Field Selectable Light Output· 1×4 Selectable 25W, 30W, 40W· 2×2 Selectable 25W, 30W, 40W· 2×4 Selectable 30W, 35W, 45W
Overall Efficacy >110 lm/W
Field Selectable CCT· 3500K, 4000K, 5000K
CRI >80
0-10V Dimming Standard
Universal 120-277VAC
L70 Lumen Maintenance > 50,000 hours at 25°C

CONSTRUCTION

Field Adjustable Driver via DIP Switch
PMMA Lens Material
Die-Cast Steel Housing

DESIGN

Designed for fast and easy install
UGR <19
Sleek and Modern Design

CERTIFICATIONS

UL Listed
R0Hs Compliant
Damp Location
IC Rated
IP40 Rated
