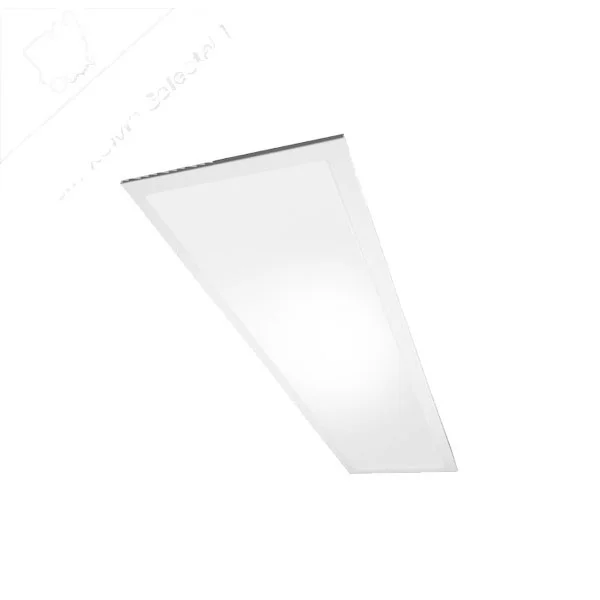

1×4 Back-Lit LED Panel with flange mounting kit for installation on plaster or other hard ceilings. Field selectable color temperatures (3500K, 4000K, 5000K) and adjustable lumen outputs (2,600 to 4,000 lumens).
Key Features and Benefits
- Field selectable color temperatures: 3500K, 4000K, 5000K
- Selectable lumen outputs: 2,600 to 4,000 lumens
- Long-life LEDs with up to 144,000 hours of operation
- DLC approved and cULus rated for damp locations
- Surge immunity protection of 1kV
- Uniform illumination with no visible LED pixilation
- Universal 120-277 AC voltage (50-60Hz)
- 0-10vdc dimming drivers standard
- Power factor > 90 and total harmonic distortion < 20%
- Aluminum frame and steel housing backplate
- PMMA LED lenses for optimal light distribution
Specifications
- Color Temperature: 3500K, 4000K, 5000K
- Lumen Outputs: 2,600 to 4,000 lumens
- Efficacy: Up to 140 lm/W
- Lifespan: Up to 144,000 hours
- Voltage: 120-277V AC
- Dimming: 0-10vdc
- Surge Protection: 1kV
- Certifications: DLC, cULus
- Power Factor: > 90
- THD: < 20%
- CRI: > 80
Common Uses
Ideal for use in offices, retail spaces, schools, and other commercial or industrial settings where uniform and efficient lighting is required.
