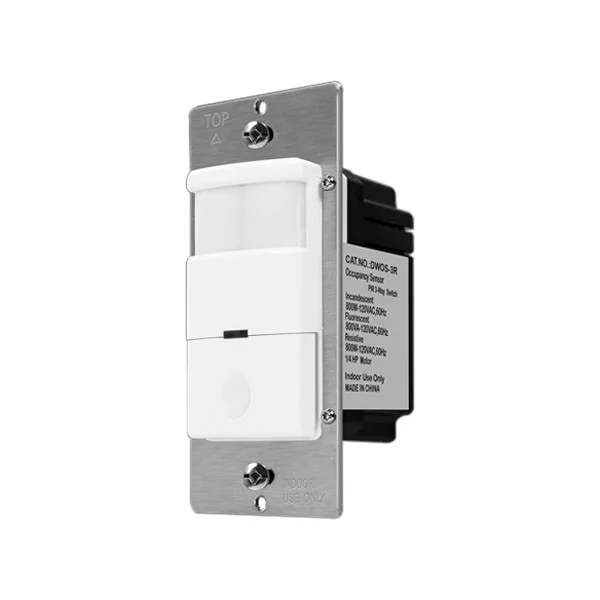

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch, Single Pole or 3-Way

180° PIR occupancy/vacancy motion sensor wall switch, single pole or 3-way, white finish, 120 Vac, 60Hz voltage, 15 sec to 30 mins time delay, adjustable sensitivity settings, light level is adjustable.
Minimum order qty. of 10 pcs.
DESCRIPTION
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turned off automatically. This productincludes adjustable Ambient Light Level.
FEATURES

Turn Light ON/OFF automatically (Occupancy Mode)
Manual ON/ automatically OFF (VAcancy Mode)
Time delay is adjustable from 15 second (test mode) to 30 minutes
Neutral wire required
Single pole or three way
Zero Crossing for long relay life
Adjustable sensitivity setting
Light level is adjustable

SPECIFICATIONS

Voltage: 120Vac,60 Hz
Incandescent: 800W
Fluorescent: 800 VA
LED: 150W
Motor: 1/4 HP
Time delay: 15 Sec to 30 Mins
Light level: 30 Lux – Daylight
Operating Temperature: 32 F to 131 F
