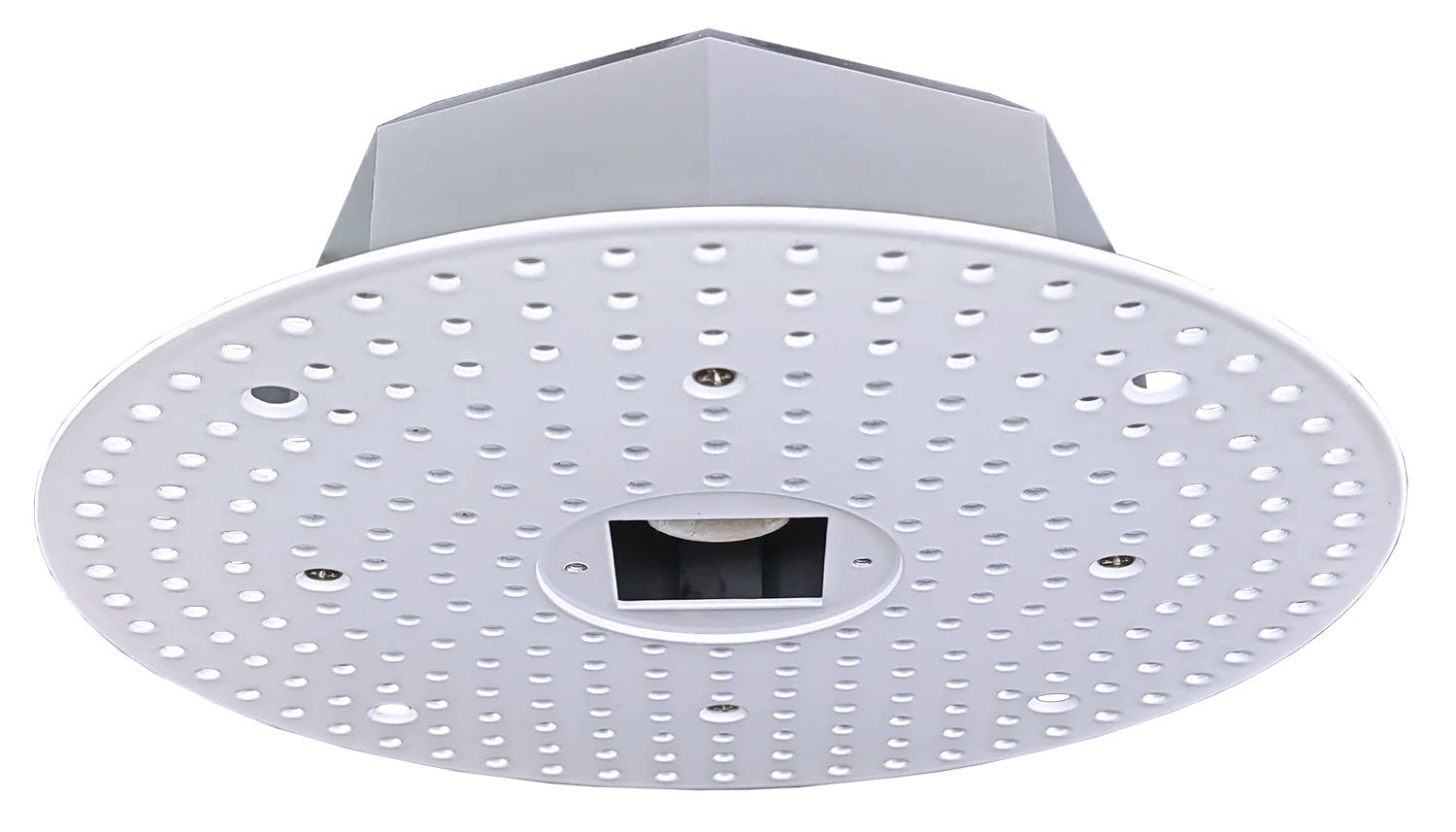

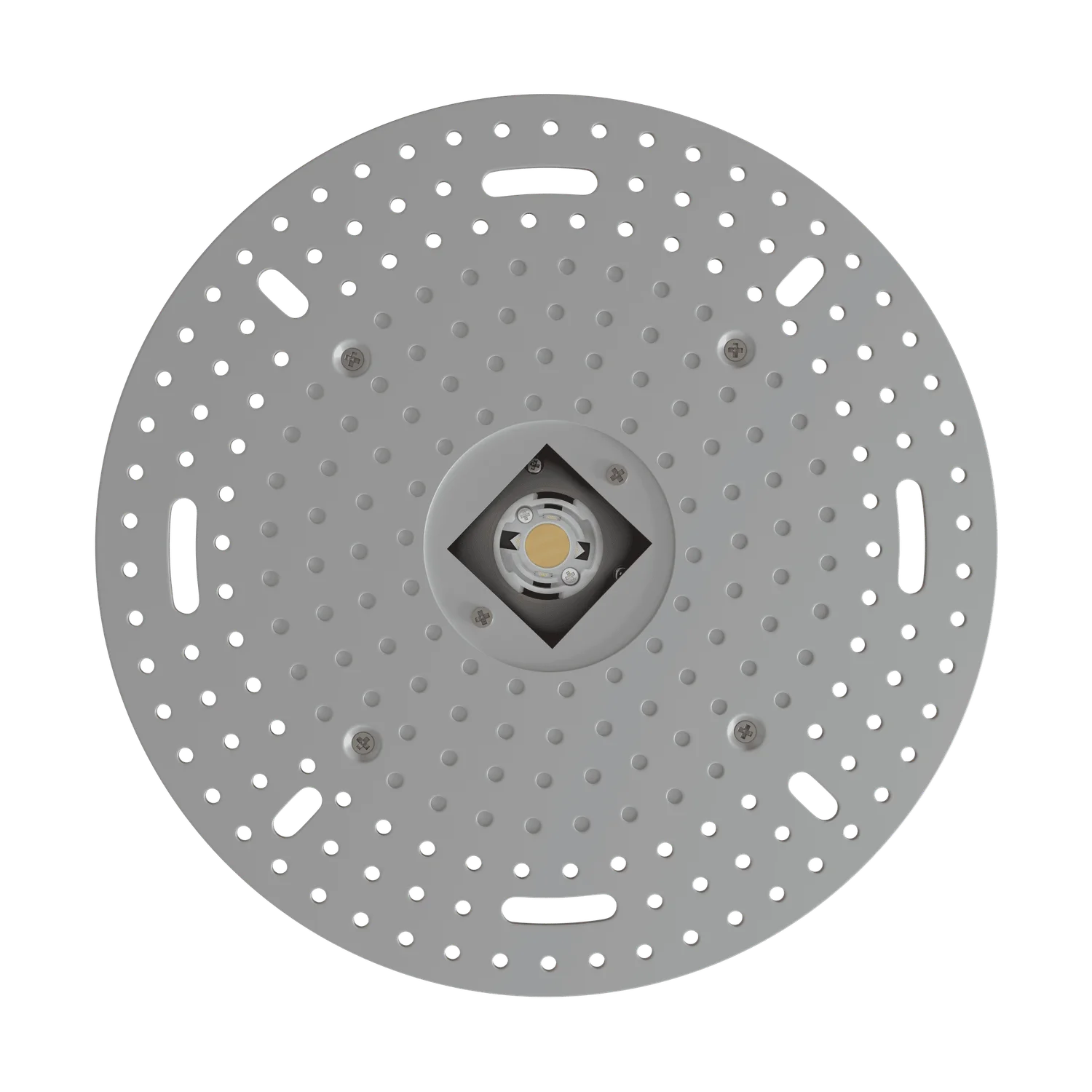

1″ Aperture Interchangeable Mud-In Module is designed for recessed lighting projects that need a refined look without giving up practical installation details.
Key Features and Benefits
- Built around a 1 Inch format for compact architectural downlighting applications.
- Delivers a 50° beam spread for controlled downlight distribution.
- Supports 0-10V / Phase dimming where compatible controls are used.
- Rated for wet-location use where the application calls for a more demanding environmental rating.
- Provides 90 CRI performance to support better color rendering in the finished space.
- Backed by certifications including ETL Listed, Title 24 Compliant.
- Covered by a 3 years warranty from Goodlite.
Specifications
- Technology: LED
- Wattage: 15W
- Lumen Output: 1200
- CRI: 90
- Beam Angle: 50°
- Voltage: 36V
- Color Temperature: 2700K / 3000K / 3500K / 4100K / 5000K
- Fixture Size: 1 Inch
- Item Height: 2.8 in
- Mounting: Mud-in
- Number of Lights: 1
- Dimming Type: 0-10V / Phase
- Location Rating: Wet
- Warranty: 3 Years
- Classification: ETL, Title 24 Listed
- Barcode: 024441111200
Common Uses
Best suited to recessed lighting projects that prioritize a low-profile ceiling appearance and controlled downlight output.
