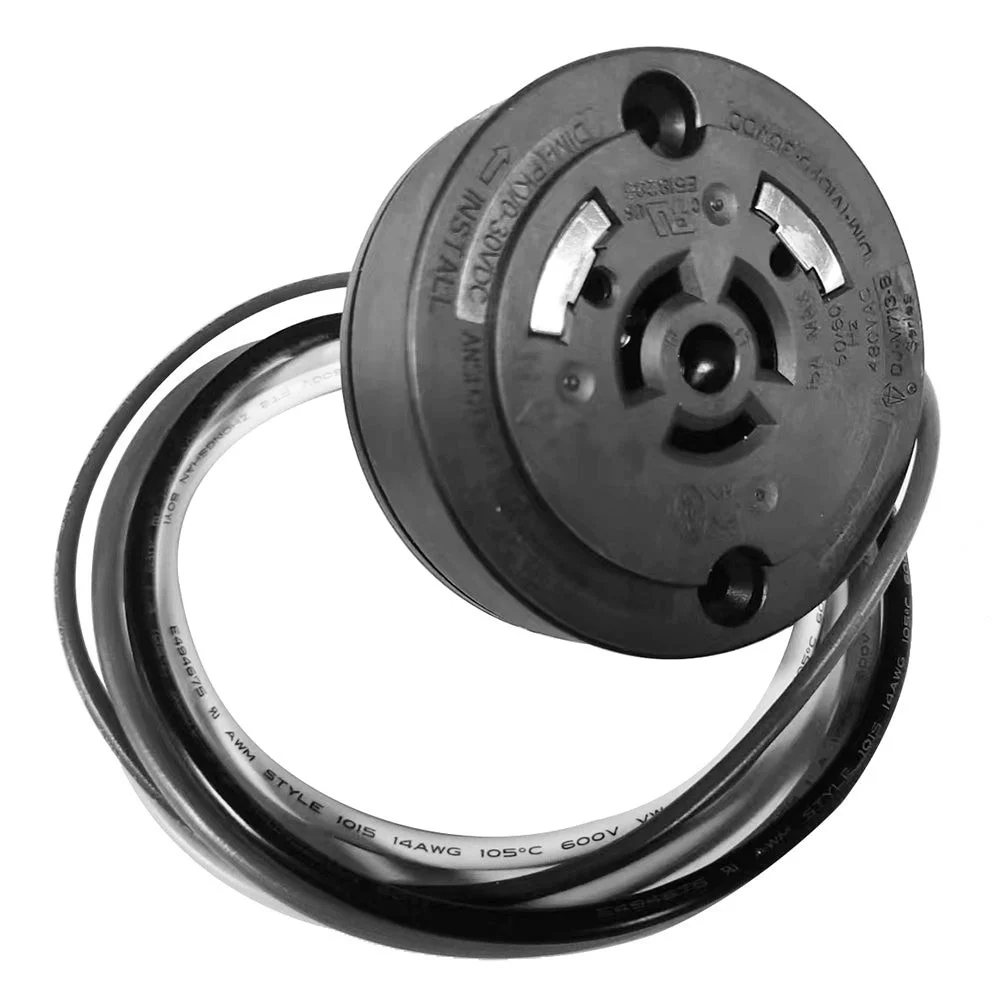

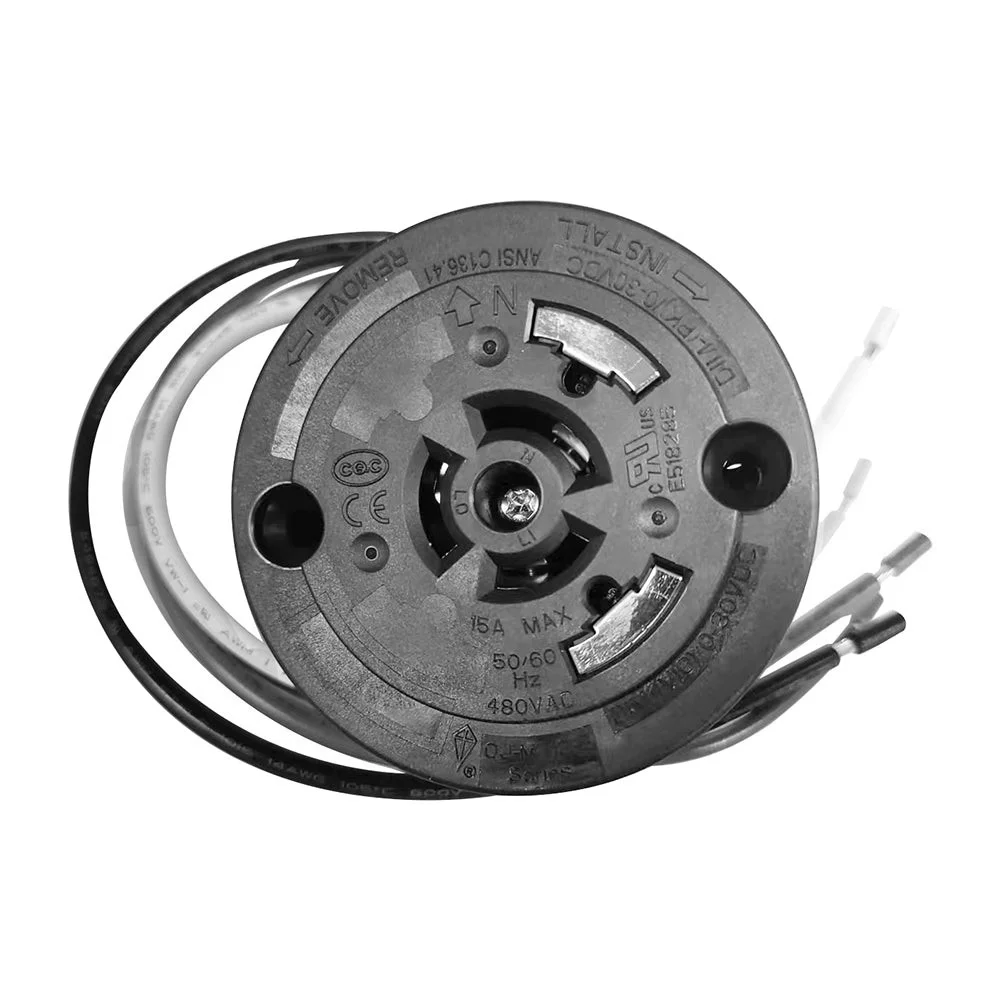

The OJ-M713-B-5P is a cutting-edge dimming receptacle designed for seamless integration into outdoor commercial and public lighting systems. This series is a vital component in modern lighting solutions, enabling efficient dimming capabilities and robust power interconnections.
Key Features and Benefits
- Accepts ANSI standard dimmable photocells for reliable connections.
- Equipped with two or four dimming contacts to support one or two channel dimming protocols.
- Features three robust twist-lock contacts for reliable power interconnects.
- Pre-terminated with wire leads for easy integration into new or existing light fixtures.
- Supports 0-30 VDC dimming methods or digital optional lighting interfaces.
- Customizable wiring length to meet customer requirements.
Specifications
- Power loading: 480VAC, Max 15A.
- Flammability: UL 94, V-0.
- Signal loading (V/A): 0-30 VDC, 250 mA Max.
- IP Protection: IP66.
- Power Contact material: Brass.
- Insulation material: PBT.
- Ambient Temperature: -40 to 70°C.
Common Uses
Ideal for street and roadway lighting, light controllers, and parking lot lighting applications.
