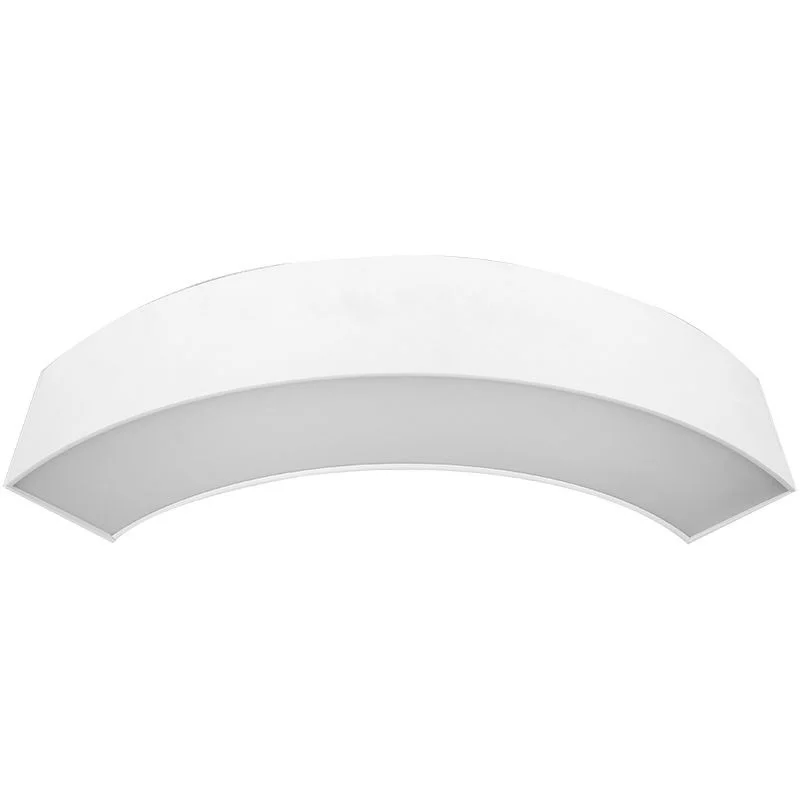

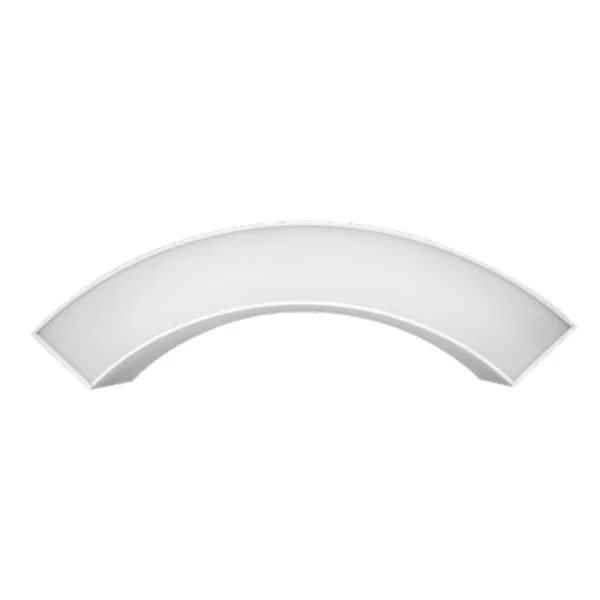

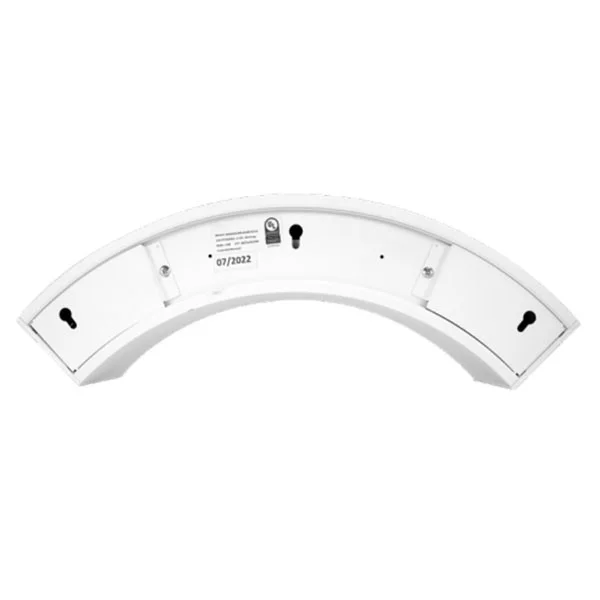

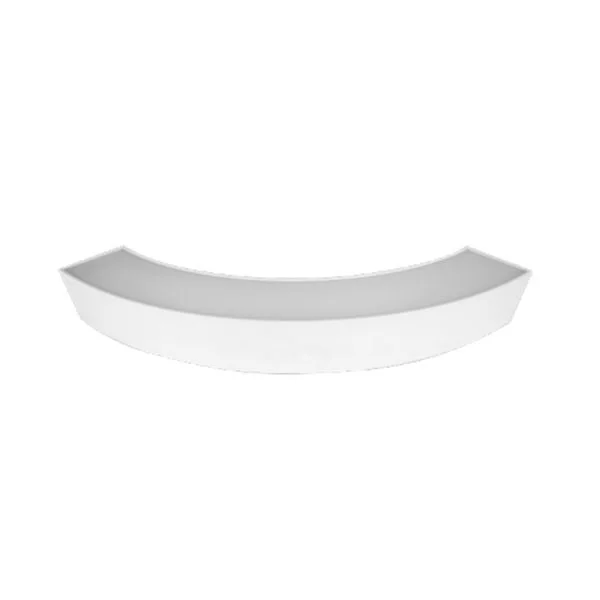

20W SCX Quarter of Circle Light Fixture
Experience unmatched versatility and modern aesthetics with our 20W SCX Quarter of Circle light fixture, perfect for all your indoor lighting needs. It features selectable color temperatures ranging from 3000K to 5000K and an adjustable lumen output of 2200 lumens. This advanced lighting solution is ideal for offices, hotels, corridors, libraries, conference halls, and more.
Key Features and Benefits
- Selectable color temperatures: 3000K, 3500K, 4000K, 5000K
- Adjustable lumen output of 2200LM for optimized brightness
- High efficacy at 110 lumens per watt (LPW)
- Extended lifespan of 50,000 hours, reducing maintenance costs
- Dimmable from 0 to 10V for flexible lighting control
- 104.8° horizontal and 100.5° vertical beam angles for wide light distribution
- High CRI (Color Rendering Index) of ≥80 to ensure vibrant and accurate color
- Multi-CCT selectable with an easy-to-use switch inside the fixture
Technical Specifications
- Voltage: 120-277V AC, 50/60Hz
- Wattage: 20W
- Power Factor: >0.9
- Total Harmonic Distortion: ≤20%
- IP Rating: IP54 for protection against dust and splashing water
- Dimensions: 2 3/4″(L) x 3 1/3″(W) x 17 5/6″(H)
- Operating Temperature: -22°F to +104°F, suitable for varied environments
- Warranty: 5 years for peace of mind
Common Uses
Our SCX Quarter of Circle light fixture is perfect for illuminating offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and other indoor spaces requiring a sleek and modern lighting solution.
