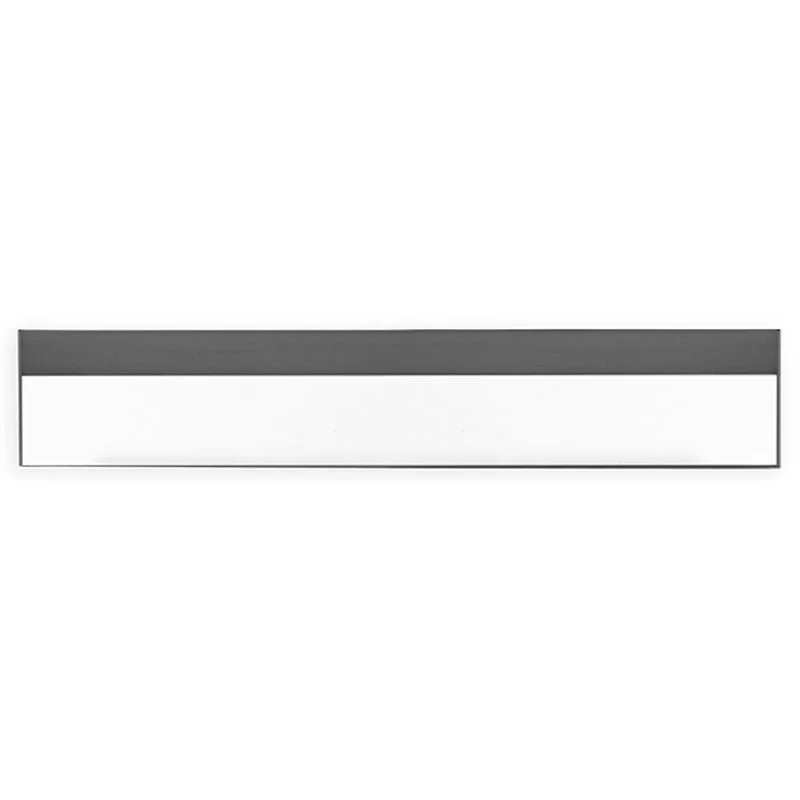

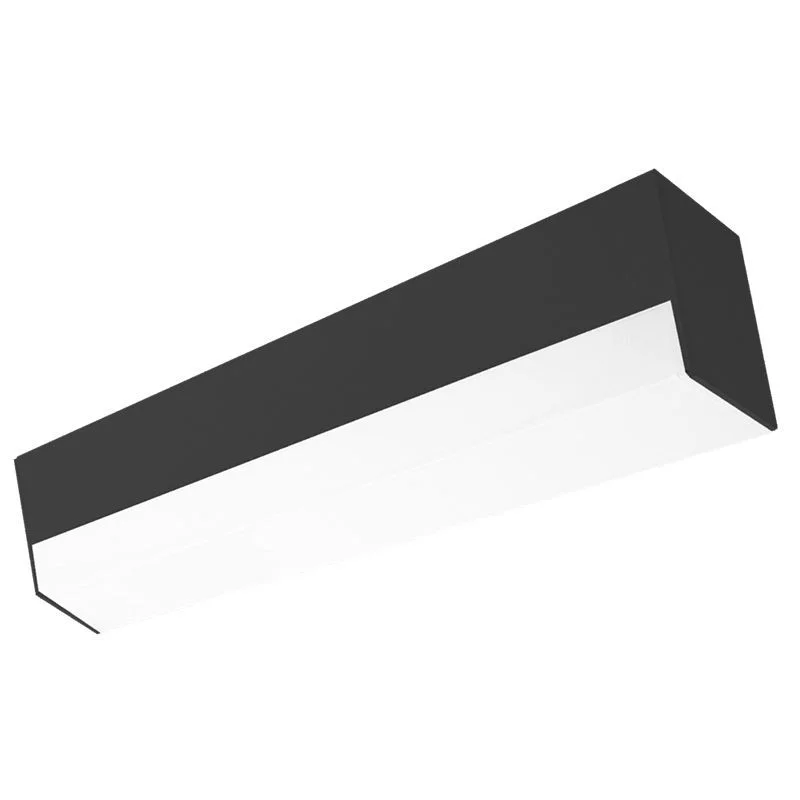

The Westgate SCX Series is a modern architectural linear lighting solution designed to elevate interior spaces while maintaining high efficiency and visual comfort. This 3′ configuration combines selectable CCT flexibility, clean styling, and dependable commercial-grade performance for offices, hospitality, and institutional projects.
Key Features and Benefits
- Selectable 4-CCT design (3000K/3500K/4000K/5000K) simplifies stocking and on-site lighting adjustments.
- Efficient 3300-lumen output at 30W helps reduce energy use while maintaining strong illumination.
- 0-10V dimming support enables smooth light-level control for task, ambient, and energy-saving strategies.
- Architectural matte black aluminum body with opal polycarbonate drop lens delivers a refined, contemporary look.
- Flexible installation options include surface, suspended, wall, and recessed mounting configurations.
- UL Listed construction with a 5-year warranty supports long-term commercial reliability.
Specifications
- Lumen Output: 3300
- Wattage: 30W
- Voltage: 120-277V
- Frequency: 50/60Hz
- Color Temperature: 3000K|3500K|4000K|5000K
- CRI: 80
- Power Factor: 0.95
- THD: 20
- Efficacy: 110 lm/W
- Beam Angle: 104.8°(H) x 100.5°(V)
- IP Rating: IP54
- Rated Life: 50000 hours
- Operating Temperature: -13°F to 104°F
- Dimensions: 35 3/5″(L) x 2 3/4″(W) x 5 2/5″(H)
- BUG Rating: B2-U2-G1
Common Uses
Ideal for offices, hotels, corridors, libraries, meeting rooms, conference halls, lobbies, reception areas, educational facilities, restaurants, and other indoor commercial environments requiring modern linear architectural lighting.
