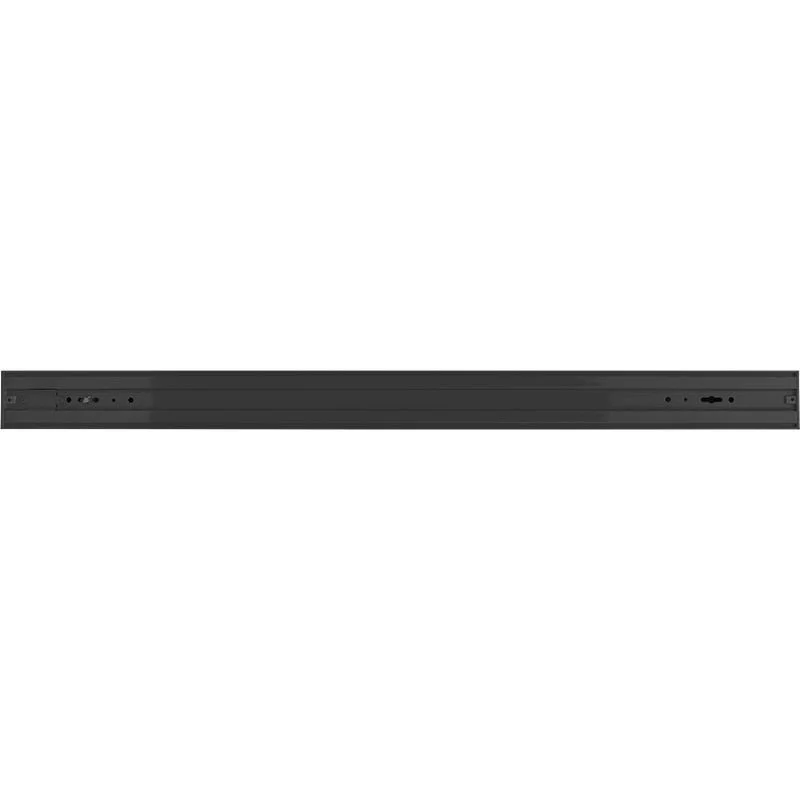

The Westgate SCX Series 4′ linear architectural fixture is a premium commercial lighting solution designed for clean aesthetics and flexible layout design. This 40W model combines selectable CCT, smooth dimming, and high efficacy to support modern office, hospitality, and institutional interiors. As part of Westgate’s modular SCX lineup, it enables seamless, professional-grade linear lighting installations.
Key Features and Benefits
- Selectable 4-CCT output (3000K/3500K/4000K/5000K) for easy on-site lighting customization
- 0-10V dimming capability for enhanced control, comfort, and energy savings
- Architectural low-profile form with matte black aluminum housing for a modern finish
- Seamless linkable system with compatibility for T/L/X/Y/corner modules and multiple mounting styles
- UL Listed construction with 5-year warranty for dependable commercial performance
- IP54-rated design helps protect fixture performance in demanding indoor environments
Specifications
- Lumen Output: 4400
- Wattage: 40W
- Voltage: 120-277V
- Frequency: 50/60
- Efficacy: 110 lm/W
- CRI: 80+
- Power Factor: >0.95
- THD: ≤20%
- Beam Angle: 104.8°(H) x 100.5°(V)
- Rated Life: 50000 hours
- Dimensions: 47 2/5″(L) x 2 6/8″(W) x 3 3/8″(H)
- Operating Temperature: -13°F to 104°F
Common Uses
Ideal for offices, conference rooms, lobbies, reception areas, corridors, libraries, hotels, restaurants, retail spaces, and other indoor commercial applications requiring modern linear architectural illumination.
