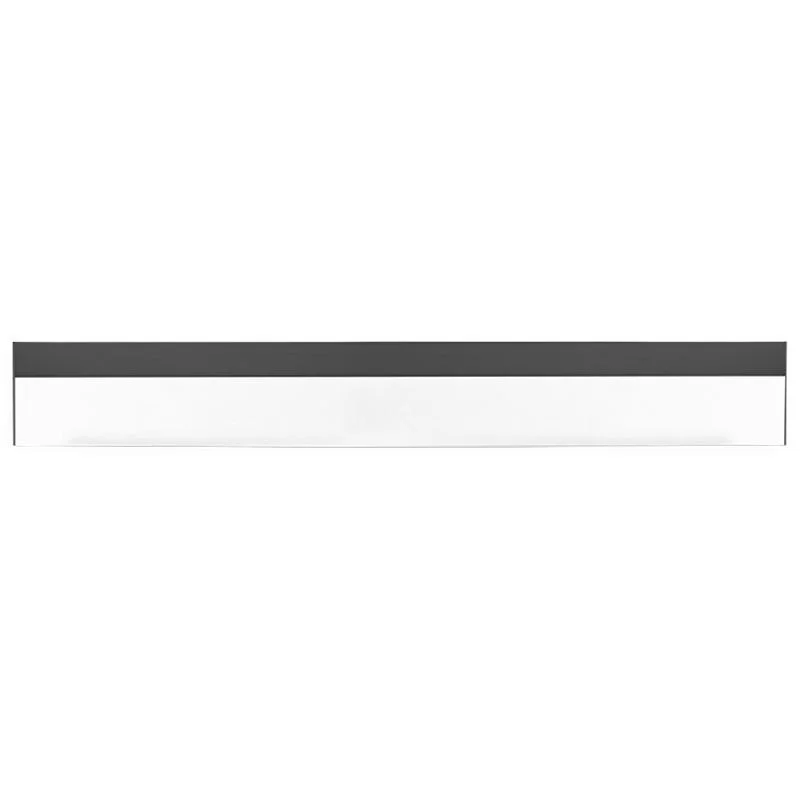

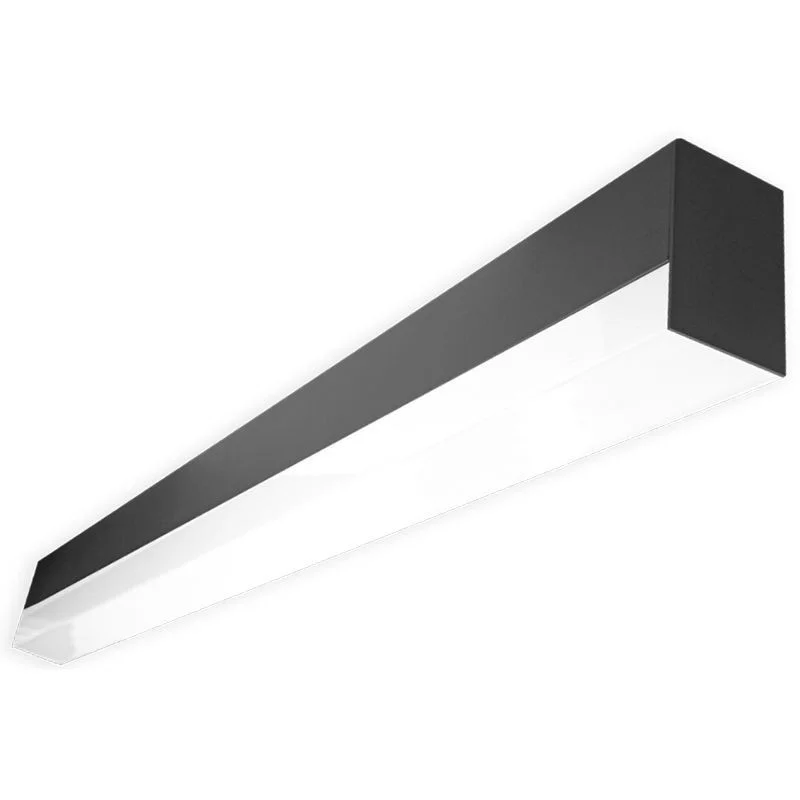

The Westgate SCX Series 4′ linear architectural light is a sleek commercial fixture designed to elevate interior spaces with clean lines and reliable LED performance. As part of Westgate’s versatile SCX lineup, it combines selectable CCT, strong efficacy, and multiple mounting compatibility for modern lighting designs.
Key Features and Benefits
- Selectable 4-CCT output lets you tune the ambiance from warm to daylight tones in one fixture.
- High-efficiency 110 lm/W performance helps reduce energy costs while maintaining strong illumination.
- 0-10V dimming support enables smooth light control for offices, hospitality, and conference environments.
- Architectural matte black aluminum body with opal polycarbonate drop lens delivers a refined, low-glare look.
- UL Listed construction with a 5-year warranty adds confidence for long-term commercial installations.
- Flexible installation support for surface, suspended, wall, and recessed applications.
Specifications
- Lumen Output: 4400
- Wattage: 40W
- Voltage: 120-277V
- Color Temperature: 3000K|3500K|4000K|5000K
- CRI: 80
- Beam Angle: 104.8°(H) x 100.5°(V)
- Power Factor: 0.95
- THD: 20
- Frequency (Hz): 50/60
- IP Rating: IP54
- Rated Life (70 Hours): 50000
- Operating Temperature: -13°F to 104°F
- BUG Rating: B1-U4-G2
- Dimensions: 47 2/5″(L) x 2 3/4″(W) x 5 1/5″(H)
Common Uses
Ideal for offices, hotels, corridors, libraries, meeting rooms, conference halls, lobbies, reception areas, educational facilities, retail spaces, and other indoor architectural lighting applications.
