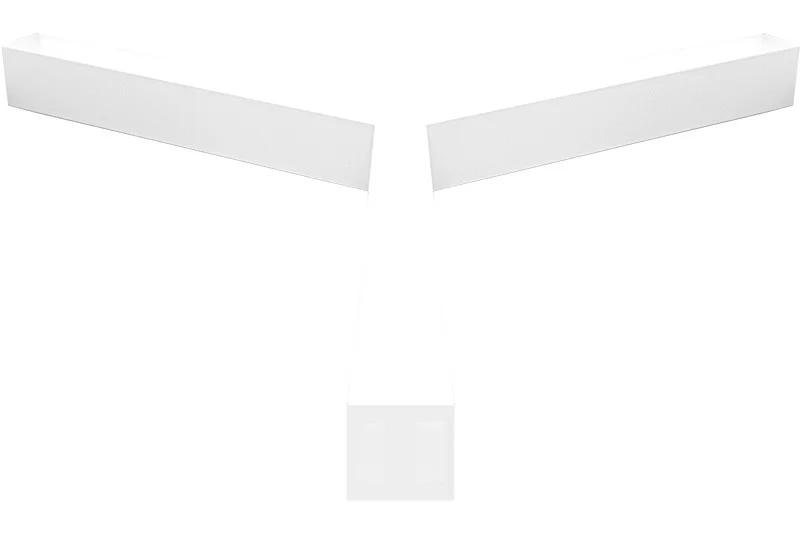

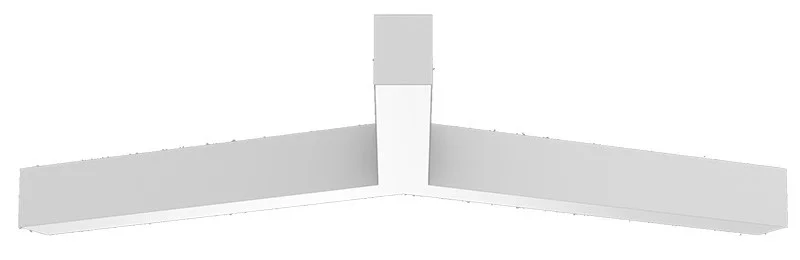

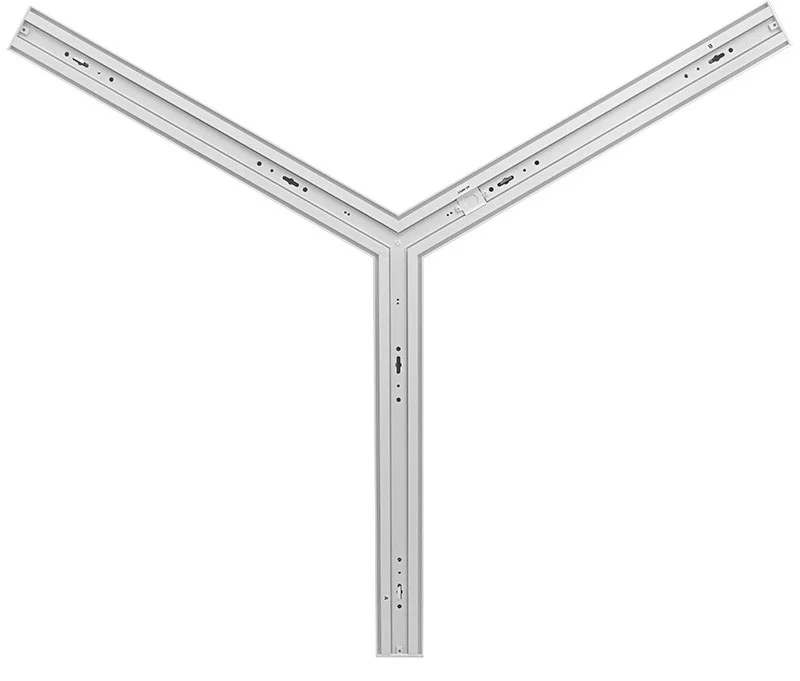

The SCX Series LED Y-Shape light is a superior architectural lighting solution offering seamless linkable linear lighting. It’s designed for modern indoor applications, providing a sleek and energy-efficient illumination.
Key Features and Benefits
- LED Superior Architectural Lights
- Seamless Linkable Linear Lighting System
- Opal Polycarbonate Lens-Direct (DOWN) Lighting
- Low Profile Modern Design
- Aluminum Housing With Matte White Finish
- Custom Colors Available
- Lens Snaps into Housing
- Make Different Connections Via T/L/X Joints on Both Ends
- Mounting Options: Surface, Suspended, Recessed
- IP Rating: IP54
- Operating Temperature: -13°F~104°F
- Dimmable: 0~10V Dimming
- Total Lumens: 7102LM
- Color Temperatures: 3000K/3500K/4000K/5000K
- Multi-CCT(Selectable Switch Inside Fixture)
- Color Rendering Index: CRI ≥ 80
- Up Light Option Available
- 50,000 Hours Rated Life
- 5-Year Warranty
- Beam Angle: 104.8°(H) x 100.5°(V)
- Optional Louver Version Lens Available
Specifications
- Voltage: 120-277VAC 50/60Hz
- Wattage: 60W
- Power Factor: >0.95
- Total Harmonic Distortion: ≤ 20%
Common Uses
Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and various indoor applications requiring modern lighting solutions.
