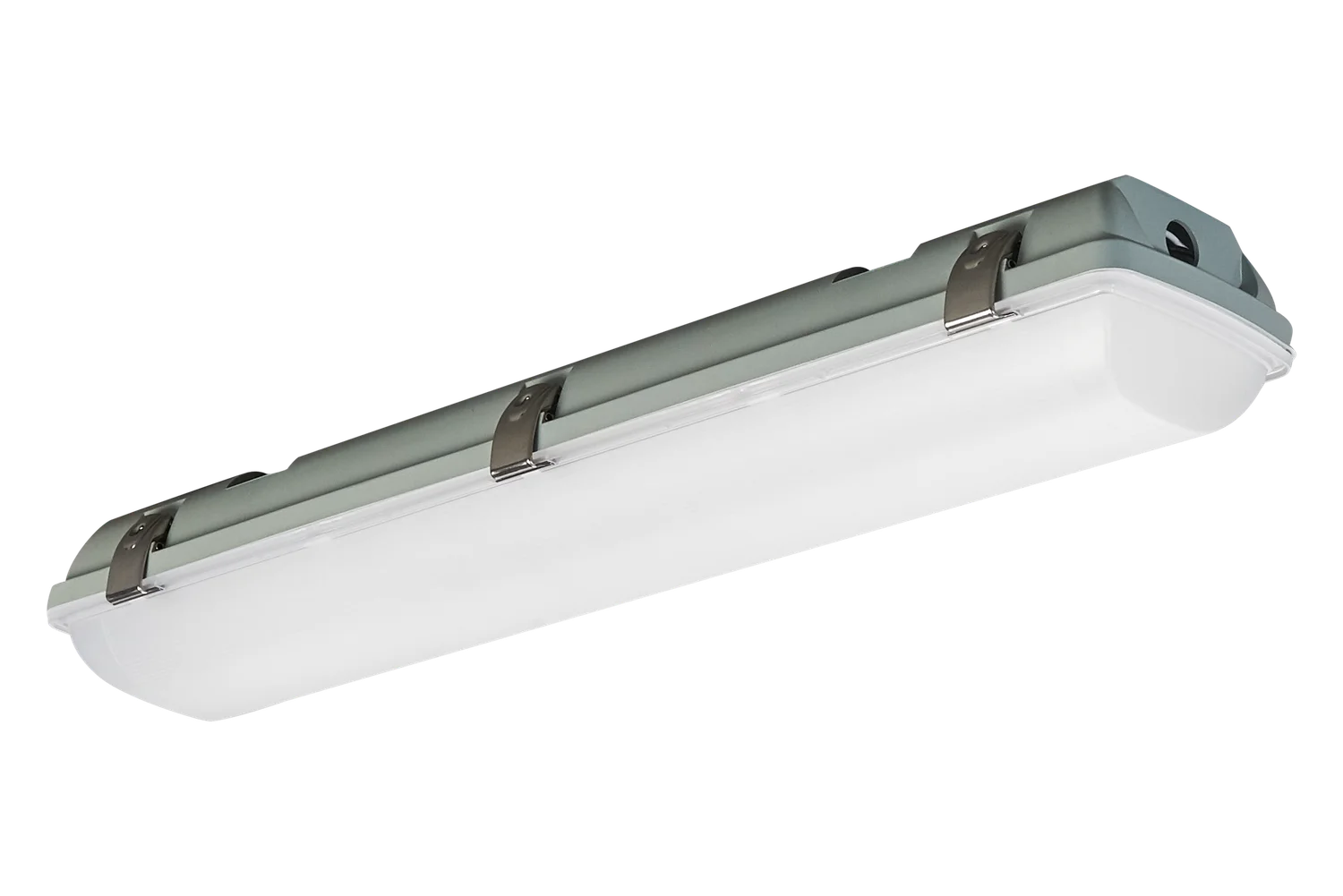

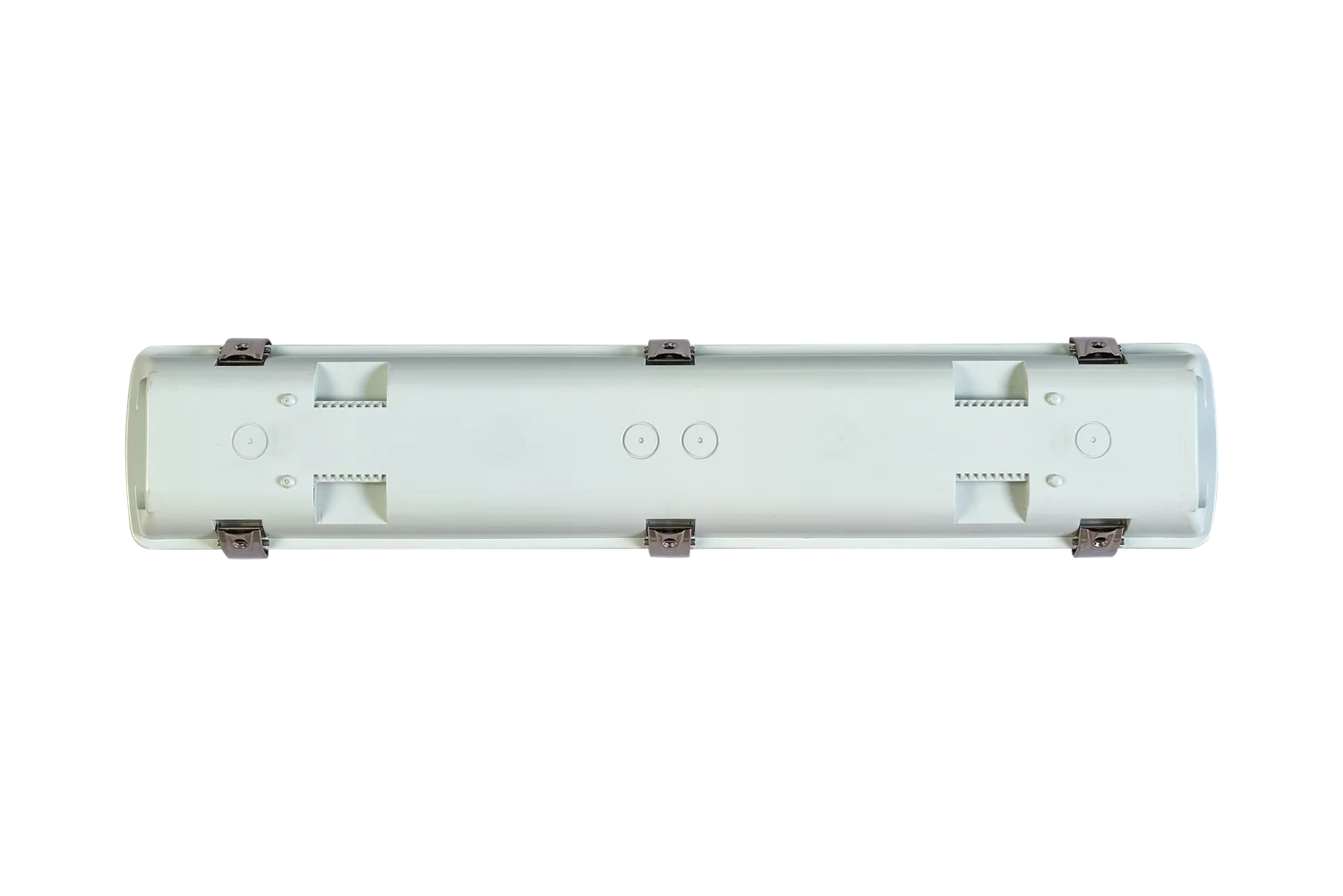

VP3 Vapor Proof Linear Fixture offers high efficacy and versatile lighting solutions with selectable color temperatures and lumen outputs. Ideal for demanding environments.
Key Features and Benefits
- Easily add a behind the lens standalone control solution; minimal wiring required
- Available in 2′, 4′, and 8′ lengths aids in standardizing appearance when mixing fixtures of different lengths
- Compatible with factory installed battery backups
- V-hooks and surface mounting clips included
- Stainless steel clips
- Cable gland included for sealing power cable entry, knockout plug accessory available
- Frosted polycarbonate lens eliminates glare
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT feature provides multiple color temperature settings in one fixture
Specifications
- High efficacy, up to 140 lm/W
- Power-selectable 25/20/15W
- Field-selectable CCT 3500K, 4000K, 5000K
- CRI: >80
- Beam Angle: 110°
- Estimated L70: 100,000 Hours
- Input voltage: 120-347V
- 0-10V dimming, dim-to-off
- Surge protection: 2.5 kV
- Power factor: >0.9
- THD: <20%
- Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)
- IP66 Rated
- UL listed for US & Canada
- RoHS Compliant
- FCC Compliant
- DesignLights Consortium® Qualified
- NEMA4X Rated
- NSF listed for Splash Zone and Non Food Zone
Common Uses
Parking Garages, Barns, Utility Lighting, Stairwells, Warehouses, Industrial/Commercial settings, Low Bay areas.
