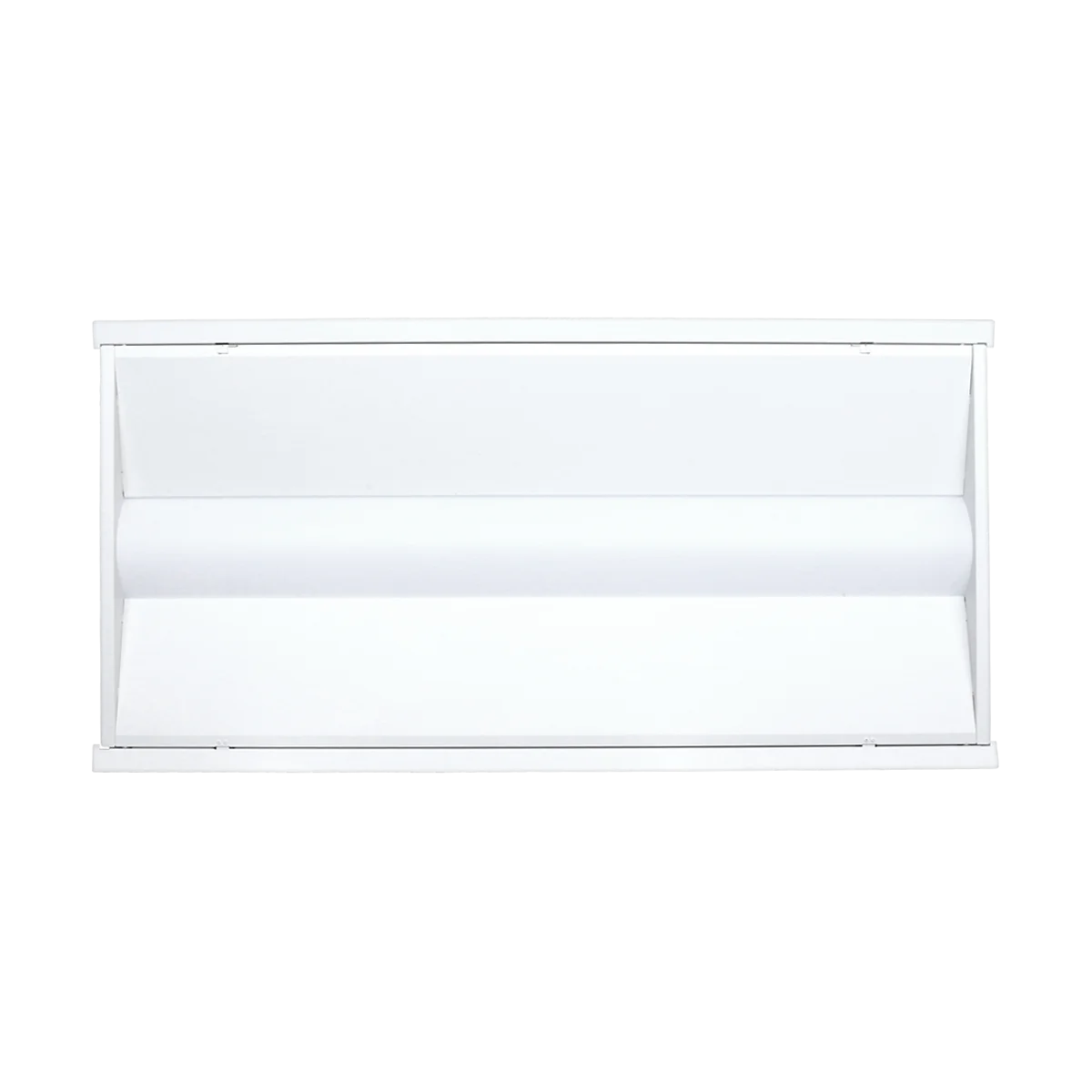

The EiKO VOL-R series volumetric troffer retrofit is an architectural LED upgrade designed for fast one-for-one replacement of fluorescent troffers. This 2’x4′ configuration combines selectable wattage and FieldCCeT tuning to simplify stocking while supporting modern, comfortable direct/indirect illumination. As a core retrofit solution in EiKO’s commercial lineup, it helps reduce energy use and improve lighting quality across interior spaces.
Key Features and Benefits
- PowerSet technology enables field-selectable output levels for flexible light planning and energy optimization.
- FieldCCeT selectable 3500K/4000K/5000K supports adaptable visual environments from warm-neutral to crisp white.
- 0-10V dim-to-off driver with low-end dimming below 5% supports advanced control strategies and occupant comfort.
- Volumetric direct/indirect optical design with diffuse lens improves visual comfort and reduces harsh glare.
- UL Listed for dry and damp locations and DLC Standard qualified for rebate-friendly, code-conscious projects.
- Backed by a 5-year limited warranty for dependable long-term performance.
Specifications
- Size: 2’x4′
- Lumen Output: 6300/5000/4400/3700
- Wattage: 49/39/34/29W
- Input Voltage: 120-277V
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: >80
- Efficacy: 130 lm/W
- Rated Life: >50,000 hours (L70)
- Power Factor: >0.90
- THD: <20%
- Operating Temperature: -20b0C to 40b0C (-4b0F to 104b0F)
- Construction: Powder-coated die-formed steel reflector with diffuse polycarbonate lens
- Auxiliary Output: 12V, 60mA DC
Common Uses
Ideal for conference rooms, offices, retail areas, hospitality spaces, healthcare facilities, schools, reception areas, corridors, and foyers where efficient, comfortable general illumination is required.
