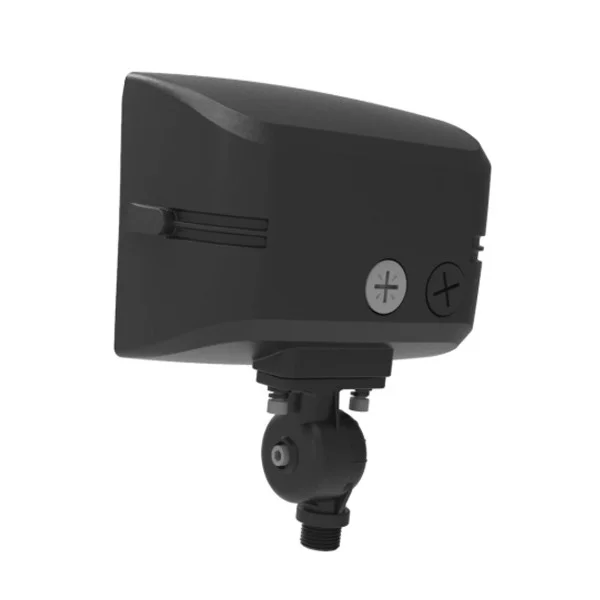

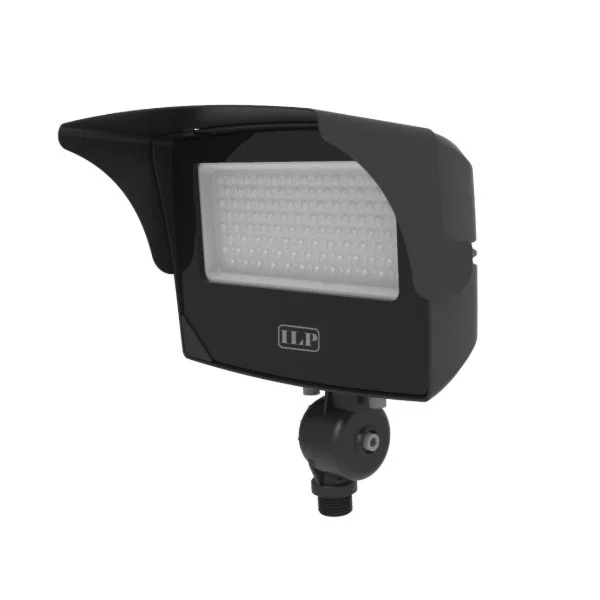

The ILP Viewpoint Floods 2.0 VFS2 is a compact, specification-grade outdoor flood luminaire designed for flexible site lighting with field-adjustable output and optics. As part of ILP’s scalable VF2.0 family, it combines durable construction, control-ready performance, and simplified stocking through multi-selectable configurations.
Key Features and Benefits
- Field-selectable lumen output and CCT reduce SKU complexity while allowing on-site tuning for changing project needs.
- Selectable optical patterns (5H5V, 6H6V, 7H6V) help optimize beam spread without replacing lenses.
- Rugged die-cast aluminum body with bronze powder coat and sealed tempered glass lens stands up to harsh weather and outdoor exposure.
- Integrated dusk-to-dawn photocell with override capability adds automatic control and energy savings.
- ETL Listed for wet locations and tested to LM-79/LM-80 standards for dependable photometric and component performance.
- Backed by a 5-year standard warranty, with optional 10-year coverage available.
Specifications
- Lumen Output: 2445|3950|4650
- Wattage: 15W|25W|30W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Dimming Type: 0-10V (10%-100%)
- Frequency (Hz): 50|60
- IP Rating: IP65
- Max Ambient Temperature: 50°C
- Distribution Type: Type I
- Mounting: 1/2″ knuckle (factory installed)
Common Uses
Ideal for landscape lighting, wall washing, spot and flood applications, flag poles, signage, and elevation illumination in commercial and industrial outdoor environments.
