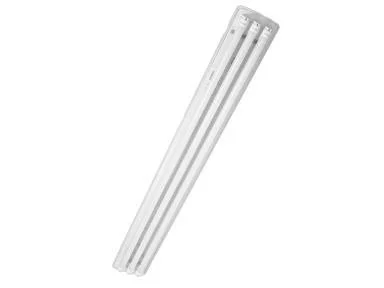

The MaxLite Lamp Ready Vapor Tight LSV Series is a versatile and reliable fixture designed for use with 3xT8 LED lamps, providing superior performance in both indoor and outdoor covered settings.
Key Features and Benefits
- Stainless Steel spec grade hasps and clips
- Lead wires are 7’ for tandem wiring, eliminating back and end knockouts
- Sockets are wired in series via non-shunted sockets
- Ceiling or wall mounted
- Surface mount brackets included
Specifications
- Engineered and UL rated to take up to 22W per set of lamp holders
- Pour in place silicone seal provides hermetically sealed envelope for wet environments
- Polycarbonate White Housing and clear lens standard
- Wiring is 18 AWG solid to allow 120-277V operation where lamp specification allows
- Sockets rated to 660W, 600V, UL Listed
- 5-year standard warranty (indoor), 3-year standard warranty (outdoor)
- RoHS compliant; no mercury
- IP65 rated for indoor/outdoor covered wet environments
Common Uses
Ideal for use in parking garages, industrial facilities, and other areas where a durable, moisture-resistant lighting solution is necessary.
