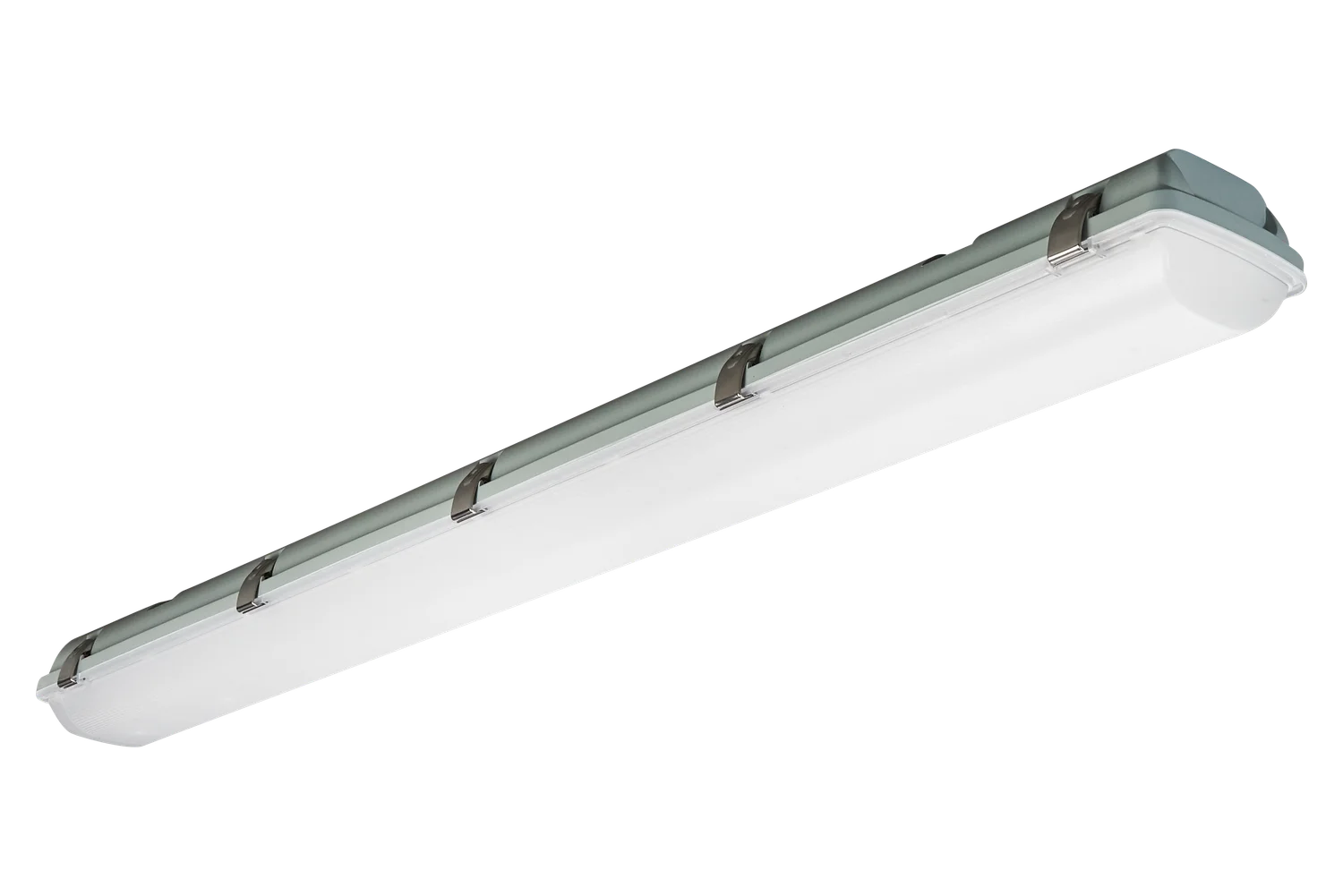

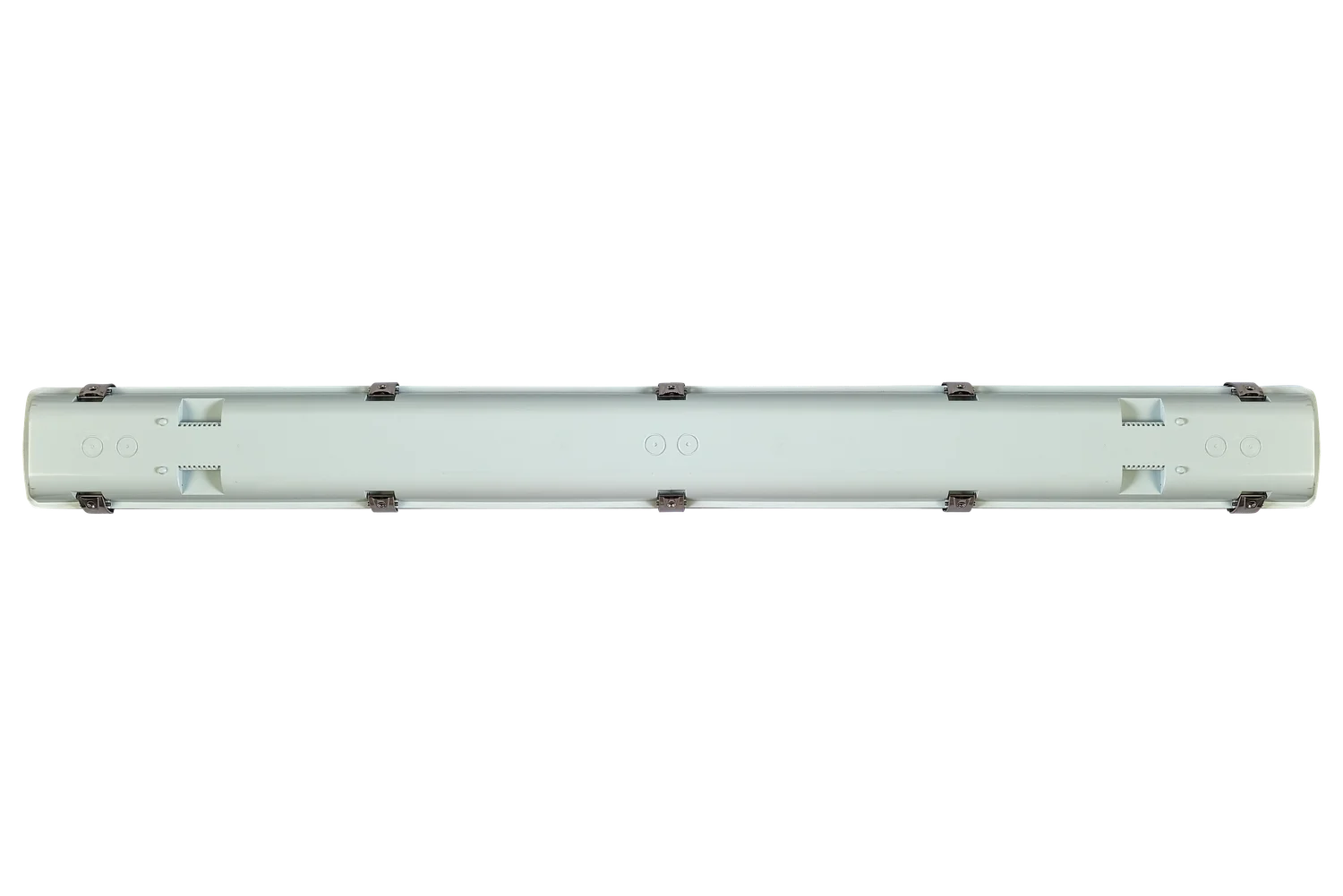

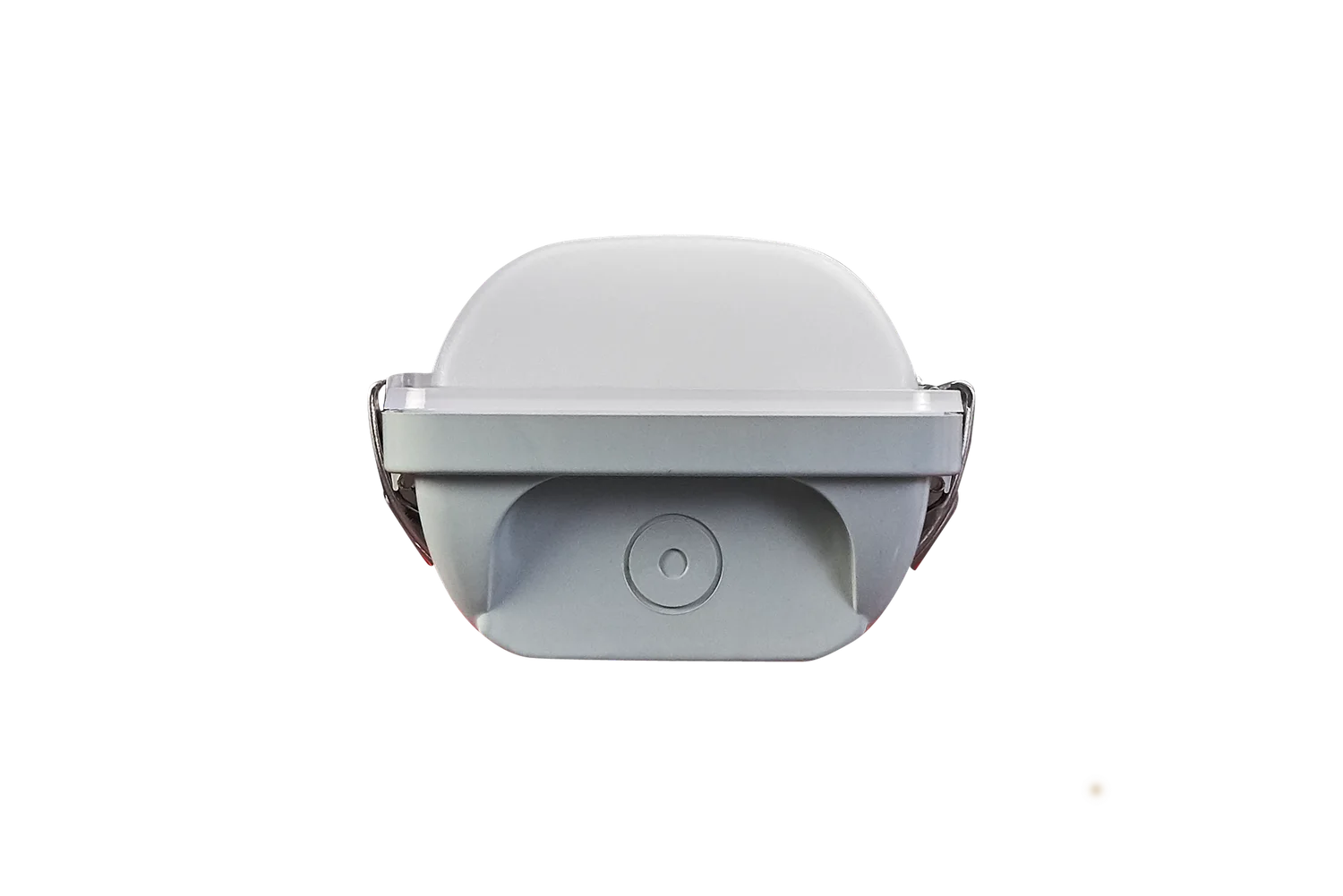

A versatile 4′ vapor proof linear fixture with selectable 45/35/26W power settings and field selectable color temperature of 3500/4000/5000K. High efficacy at 140 lm/W and multiple mounting options.
Key Features and Benefits
- Easily add a behind the lens standalone control solution; minimal wiring required
- Available in 2′, 4′ and 8′ lengths aids in standardizing appearance when mixing fixtures of different lengths
- Compatible with factory installed battery backups
- V-hooks and surface mounting clips included
- Stainless steel clips
- Cable gland included for sealing power cable entry, knockout plug accessory available
- 2 – 1/2” knockouts, one on each end
- Frosted polycarbonate lens eliminates glare
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT features provides multiple color temperature settings in one fixture
Specifications
- High efficacy, up to 140 lm/W
- Available in PowerSet models: power-selectable 45/35/26W
- FieldCCeT models: field-selectable CCT 35/40/5000K
- CRI: >80
- Beam Angle: 110°
- Estimated L70: 100,000 Hours
- Input voltage: 120-347V
- 0-10V dimming, dim-to-off
- Surge protection: 2.5 kV
- Power factor: >0.9
- THD: <20%
- -40°F to 122°F (-40°C to 50°C) ambient operating temperature, suspended mount
- -40°F to 113°F (-40°C to 45°C) ambient operating temperature, surface mount
- Durable polycarbonate lens and grey housing for demanding environments
- Stainless steel lens clips
- 5 Year limited warranty available online
Common Uses
Parking garages, barns, utility lighting, stairwells, warehouses, industrial/commercial settings, low bay applications.
