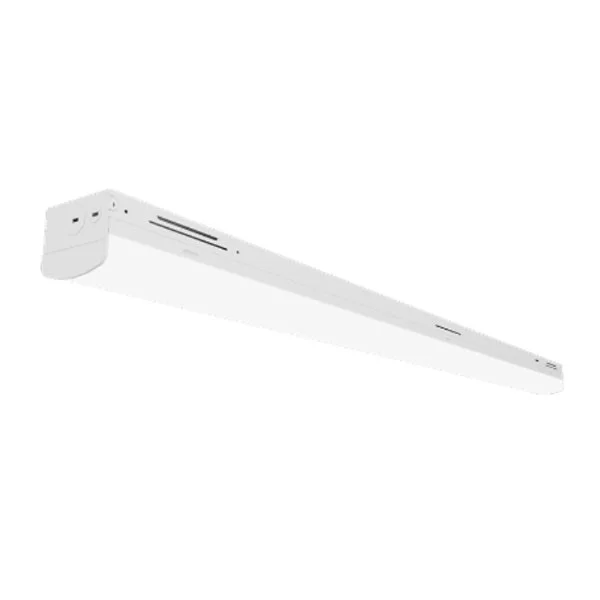

Compact and highly adjustable 4ft strip luminaire with selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen output up to 7000 lm.
Key Features and Benefits
- Narrow and highly adjustable strip luminaire
- Steel housing with white powdercoat finish
- Field selectable or factory set lumen output (3504/4165/4722 lm)
- Field selectable CCT (3500K, 4000K, 5000K)
- High efficacy up to 162 lm/W
- >80 Color Rendering Index (CRI)
- 0-10V dimmable driver (100% – 10%)
- 120 – 277V universal voltage
- Factory installed battery backups from 6W-12W
- 347V or 480V step down transformers
- -4°F to 122°F ambient temperature range
- 5-year warranty (standard)
Specifications
- Construction: Steel housing body with a white powdercoat finish
- Optics: High transmission impact-resistant frosted acrylic lens
- Controls: Factory installed basic sensor options available
- Certifications: ETL Listed, Title 24 Compliant
- Electrical: Class 2 LED light engine, Power Factor > 0.90
- Installation: Surface, wall, pendant, and suspended mounting options
- Warranty: 5-year standard, 10-year optional
Common Uses
Ideal for applications in education, healthcare, retail, warehouses, schools, grocery stores, hallways, distribution centers, and manufacturing facilities.
