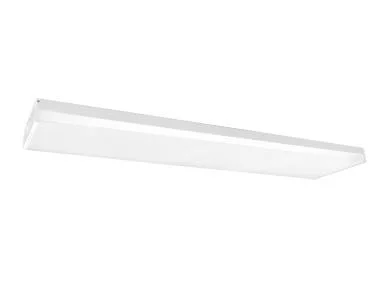

Utility Wrap Lamp Ready 4XT8 LED 120-277V, Single/Double Ended

The MaxLite “Lamp Ready” Utility Wrap series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest Single/Double ended LED T8 lamps supplied separately. Offering a classic prismatic diffuser with post-painted finish, these fixtures come pre-wired for single-ended operating LED lamps for contractor-ready installation as new or remodel fixtures.

Key Features and Benefits

• Lead wires are 7’ for tandem wiring, eliminating back and end knockouts.
• Sockets are wired in series via non-shunted sockets.
• Ceiling or wall mounted.
• Option “MSO” on/off occupancy sensor available.
• Cable kits available for suspended use.

Specifications

• Engineered and UL rated to take up to 22W per set of lamp holders.
• Damp and indoor rated use.
• Post fab painted housing and prismatic lens standard.
• Wiring is 18 AWG solid to allow 120-277V operation where lamp specification allows.
• Sockets rated to 660W, 600V, UL Listed.

Common Uses

Ideal for commercial and industrial settings, including warehouses, utility rooms, and covered outdoor areas.
