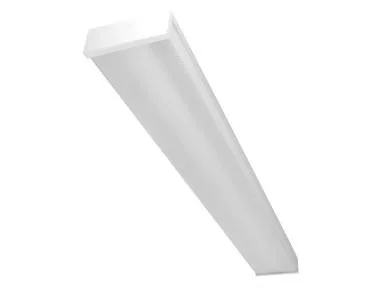

Utility Wrap Lamp Ready 2XT8 LED 120-277V, Single/Double Ended

The MaxLite “Lamp Ready” Utility Wrap series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest Single/Double ended LED T8 lamps supplied separately. Offering classic prismatic diffuser, with post painted finish, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures.

Key Features and Benefits

• Lead wires are 7’ for tandem wiring, eliminating back and end knockouts.
• Sockets are wired in series via non-shunted sockets
• Ceiling or wall mounted
• Option “MSO” on/off occupancy sensor available
• Cable kits available for suspended use

Specifications

• Engineered and UL rated to take up to 22w per set of lamp holders
• Damp & indoor rated use
• Post fab painted housing and prismatic lens standard
• Wiring is 18 AWG solid to allow 120-277v operation where lamp specification allows
• Sockets rated to 660w, 600V, UL Listed

Common Uses

Ideal for use in utility rooms, garages, and other indoor covered damp areas where reliable LED lighting is needed.
