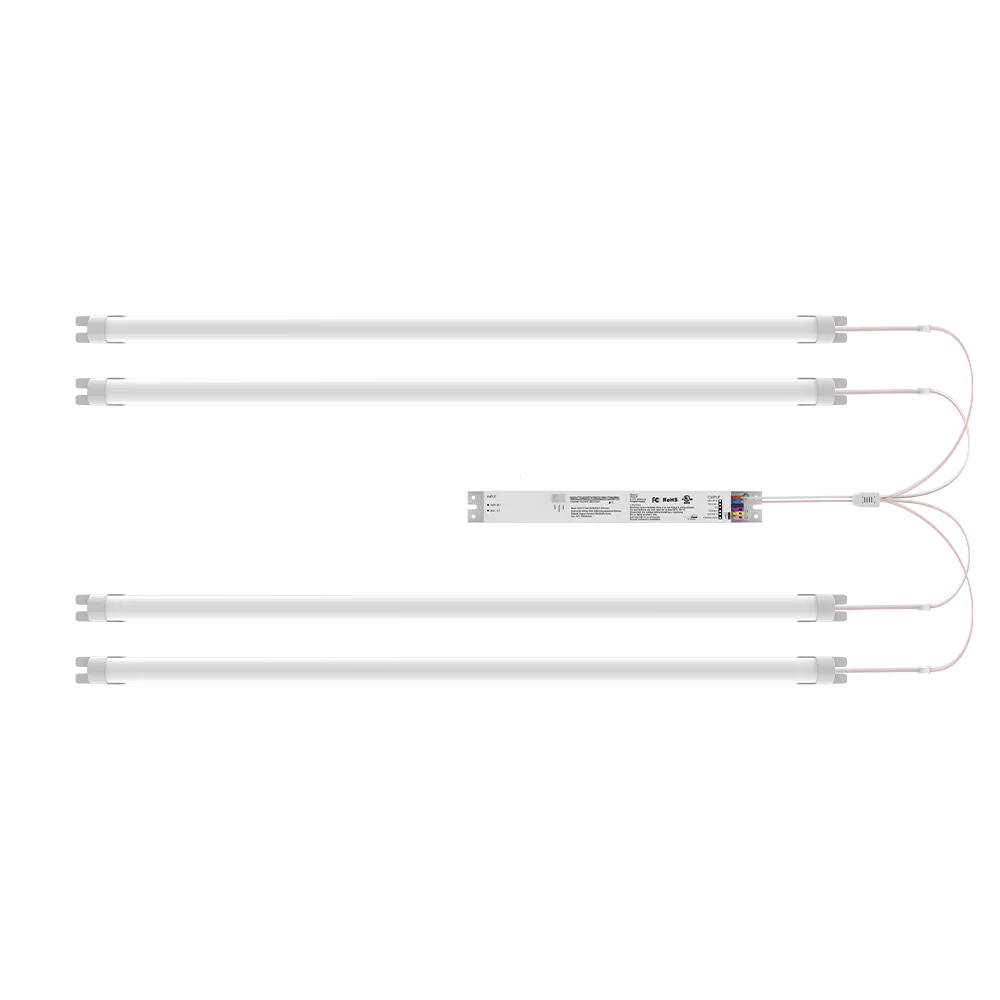

The ILP Universal Light Bar Kit is a versatile retrofit solution designed to modernize existing fluorescent fixtures with efficient LED performance. As part of ILP’s retrofit lineup, it simplifies upgrades in commercial and institutional spaces by combining flexible output options, fast installation features, and long service life.
Key Features and Benefits
- Designed for seamless fluorescent-to-LED conversion in many T8, T12, and T5/T5HO fixtures without reusing legacy sockets or ballasts
- Field-selectable lumen package supports adaptable light levels for changing space needs
- Magnetic backing, quick connectors, and included harnesses speed installation and improve alignment
- Durable plastic body with frosted polycarbonate lens helps deliver uniform, comfortable illumination
- ETL Listed, DLC Standard Qualified, FCC, TAA Compliant, and Title 24 Compliant with sensor option
- Backed by a 5-year standard warranty with optional 10-year coverage
Specifications
- Lumen Output: 5200|5900|6500
- Wattage: 32W|36W|40W
- Voltage: 120-277V
- Color Temperature: 3500K|5000K
- CRI: 80
- Dimming Type: 0-10V (10%-100%)
- Power Factor: 0.90
- THD: 20
- Efficacy (lm/W): 162|163
- Rated Life (70 Hours): 100000
- Max Ambient Temperature: 122°F (50°C)
- Primary Material: Plastic
- Lens Material: Frosted Polycarbonate
- Damp Rated: true
Common Uses
Ideal for education facilities, healthcare spaces, offices, grocery and retail stores, storage facilities, residential utility areas, and stairwells where efficient linear retrofit lighting is needed.
