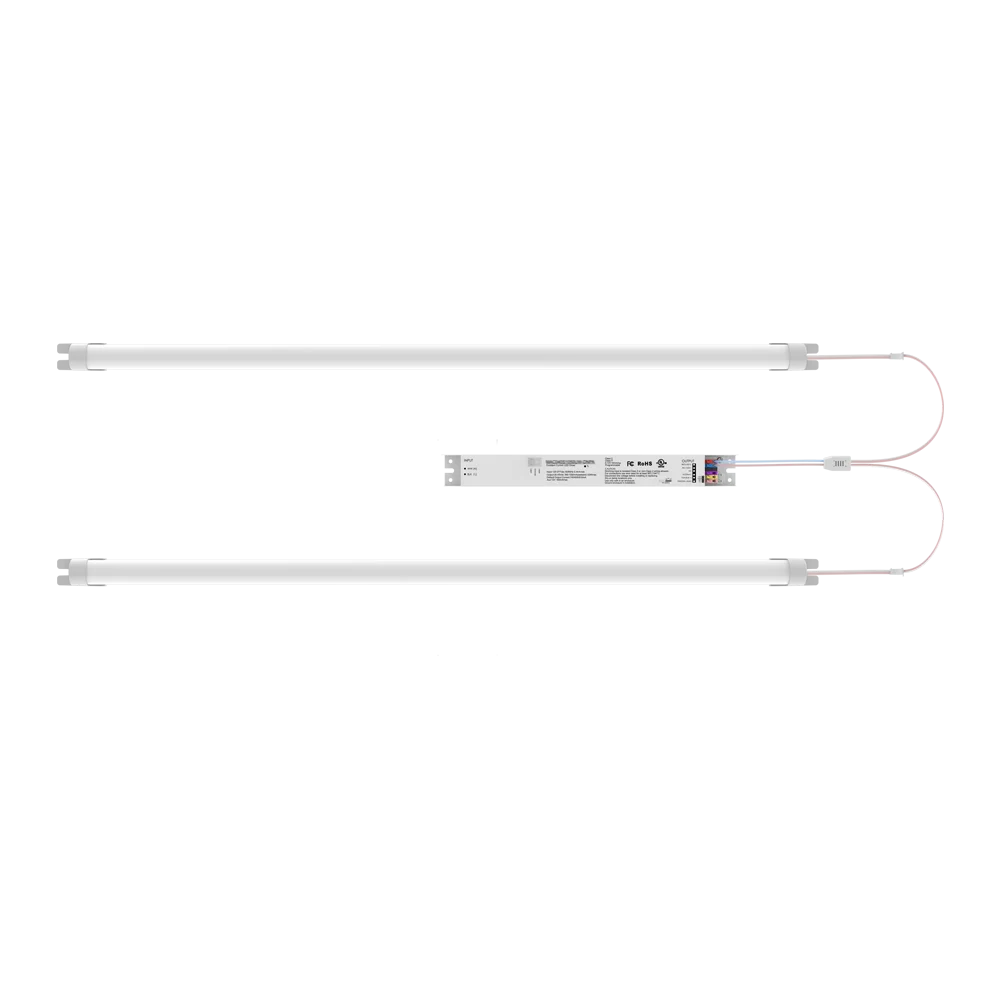

The ILP Universal Light Bar Kit is a versatile LED retrofit solution designed to modernize existing fluorescent strip and troffer fixtures with faster installation and improved efficiency. As part of ILP’s retrofit lineup, it combines magnetic alignment, quick-connect wiring, and field-selectable output to simplify upgrades across commercial spaces.
Key Features and Benefits
- Field-selectable lumen package lets you tune light levels for changing space needs.
- Magnetic backing and included self-tapping Tek screws speed installation and improve alignment.
- 0-10V dimming capability supports energy-saving control strategies and smoother light adjustment.
- Long-life LED system delivers over 100,000-hour L70 performance for reduced maintenance.
- ETL Listed, DLC Standard qualified, FCC compliant, and Title 24 compliant with sensor option for code-focused projects.
- Backed by a 5-year standard warranty with optional 10-year coverage.
Specifications
- Lumen Output: 2300|2900|3600
- Wattage: 14W|18W|22W
- Voltage: 120-277V
- Color Temperature: 3500K|5000K
- CRI: 80
- Power Factor: 0.90
- THD: 20
- Efficacy (lm/W): 164|161|163
- Rated Life (70 Hours): 100000
- Max Ambient Temperature: 122°F (50°C)
- Housing Material: Plastic
- Lens Material: Frosted Polycarbonate
- Damp Rated: true
Common Uses
Ideal for education, healthcare, office, grocery, retail, storage, residential, and stairwell environments where existing T8, T12, or T5/T5HO fluorescent fixtures are being converted to efficient LED operation.
