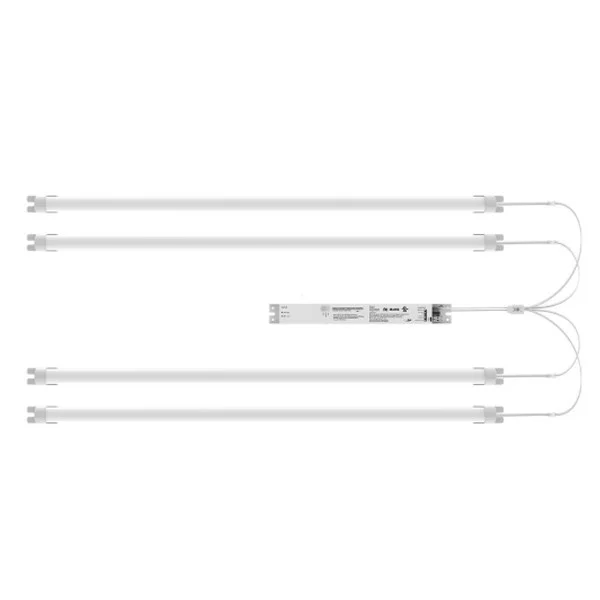

The ILP Universal Light Bar Kit is a flexible LED retrofit solution designed to modernize existing fluorescent fixtures with faster installation and improved efficiency. As part of ILP’s ULB series, this 2′ 4-bar configuration provides selectable lumen output and dependable performance for commercial and institutional spaces.
Key Features and Benefits
- Retrofit-friendly design installs into many existing T8, T12, and T5/T5HO fixtures without reusing legacy sockets or ballasts.
- Field-selectable lumen output supports easier light-level tuning for varied ceiling heights and tasks.
- Integrated magnetic backing, quick connectors, and included harnesses help speed installation and alignment.
- High efficacy performance up to 163 lm/W helps reduce energy use while maintaining strong illumination.
- ETL Listed, DLC Standard qualified, FCC compliant, and Title 24 compliant with sensor option for broader project acceptance.
- Backed by a 5-year standard warranty (10-year optional) for long-term confidence.
Specifications
- Lumen Output: 5200|5900|6500
- Wattage: 32W|36W|40W
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: 80
- Dimming Type: 0-10V (10%-100%)
- Power Factor: 0.90
- THD: 20
- Rated Life (L70): 100000+
- Max Ambient Temperature: 50°C (122°F)
- Housing Material: Plastic
- Lens Material: Frosted Polycarbonate
- Damp Rated: true
Common Uses
Ideal for schools, healthcare facilities, offices, grocery and retail stores, storage areas, residential utility spaces, and stairwells where fluorescent-to-LED retrofit performance and fast installation are priorities.
