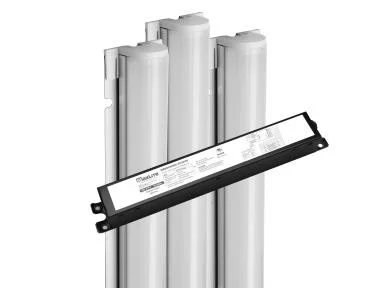

The ILP Universal Light Bar Kit is a flexible LED retrofit solution designed to modernize existing fluorescent fixtures without reusing old sockets or ballasts. As part of ILP’s ULB series, it combines fast installation, selectable output, and strong efficacy for commercial upgrade projects. This 2′ two-bar configuration is ideal for improving light quality and reducing maintenance in high-use indoor spaces.
Key Features and Benefits
- Field-selectable lumen package lets you tune light levels for the space while helping control energy use.
- Magnetic backing, quick connectors, and included harnesses speed up retrofit labor and simplify alignment.
- Durable plastic housing with frosted polycarbonate lens provides lightweight construction and smooth illumination.
- 0-10V dimming capability (down to 10%) supports modern lighting controls and occupancy-based strategies.
- Long-life LED system rated L70 over 100,000 hours helps reduce relamping and service interruptions.
- Backed by ETL listing, DLC Standard qualification, Title 24 compliance with sensor option, and a 5-year warranty.
Specifications
- Lumen Output: 2300|2900|3600
- Wattage: 14W|18W|22W
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: 80
- Efficacy (lm/W): 164|161|163
- Power Factor: 0.90
- THD: 20
- Dimming Type: 0-10V
- Rated Life (70 Hours): 100000
- Max Ambient Temperature: 122°F (50°C)
- Damp Rated: true
Common Uses
Commonly used in education facilities, healthcare spaces, offices, grocery and retail stores, storage facilities, residential utility areas, and stairwells where fluorescent-to-LED retrofit performance and quick installation are priorities.
