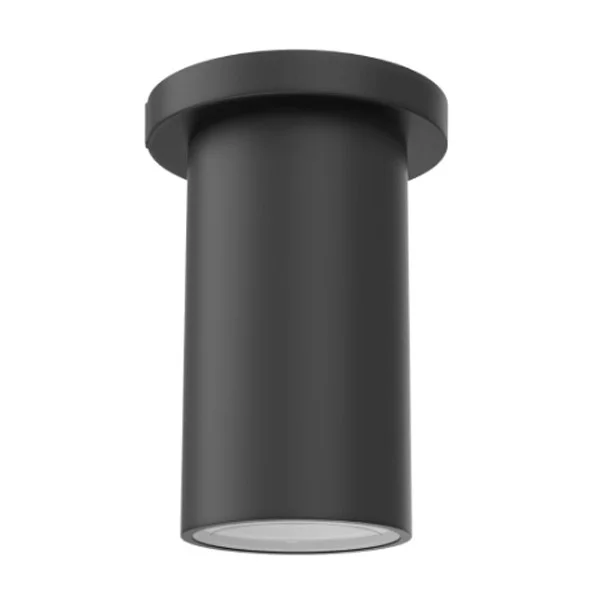

The ILP Unify UC6D surface-mount cylinder is a modern architectural outdoor fixture designed for dependable performance in demanding commercial environments. Built as part of ILP’s Unify lineup, it combines selectable output, selectable CCT, and precision optics to simplify specification while maintaining visual consistency across projects.
Key Features and Benefits
- Selectable lumen package (22L/26L/32L) allows on-site light level tuning for greater design flexibility.
- Field-adjustable CCT (3000K/3500K/4000K) supports warm-to-neutral appearance control from one SKU.
- Precision 60° wide flood optic delivers controlled beam performance with reduced glare.
- Rugged die-cast aluminum construction with stainless-steel hardware supports long-term outdoor durability.
- ETL Listed for wet locations, RoHS compliant, FCC Part A compliant, LM-79/LM-80 tested, and Title 24 compliant for confidence in code-driven projects.
- Backed by a 5-year standard warranty with optional 10-year coverage.
Specifications
- Lumen Output: 1721/2273/2814 (3000K) | 1972/2603/3222 (3500K) | 1866/2463/3048 (4000K)
- Wattage: 18W/24W/30W
- Voltage: 120-277V, 50/60Hz
- Dimming: 0-10V dimming to 5%
- CRI: 80 minimum
- Beam Angle: 60°
- Operating Temperature: -40°F to 104°F (-40°C to 40°C)
- Rated Life: 60000 hours L70 (calculated L70 up to 135000 hours)
- Ingress Protection: IP65
- BUG Rating: B2-U0-G0
Common Uses
Ideal for building exteriors, multifamily entries, hospitality sites, retail facades, healthcare campuses, and education facilities where durable, wet-location architectural downlighting is required.
