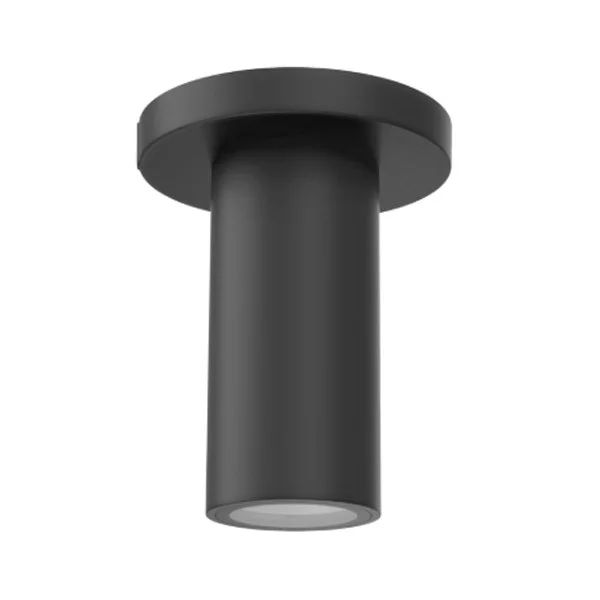

The ILP Unify UC4D series is a modern 4″ outdoor surface-mount cylinder designed to deliver flexible, high-performance architectural lighting. Built for commercial exteriors and demanding environments, it combines selectable output and CCT tuning in one durable fixture. As part of ILP’s Unify lineup, it offers a streamlined solution for projects needing both visual appeal and reliable long-life operation.
Key Features and Benefits
- Selectable lumen package (14L/18L/21L) allows on-site light level adjustment for varied applications.
- Field-adjustable CCT options (3000K/3500K/4000K) simplify SKU selection and improve project flexibility.
- Precision optical control with 60° wide flood beam supports targeted illumination with reduced glare.
- Rugged die-cast aluminum construction with stainless-steel hardware enhances durability in outdoor conditions.
- Integrated photocell with optional override supports automated dusk-to-dawn energy savings.
- Certified ETL Listed for wet locations, RoHS compliant, FCC compliant, LM-79/LM-80 tested, and Title 24 compliant.
- Backed by a 5-year standard warranty with optional 10-year coverage.
Specifications
- Lumen Output: 1237/1633/2021 (3000K, wide flood) | 1307/1726/2136 (3500K, wide flood) | 1241/1639/2028 (4000K, wide flood)
- Wattage: 12/16/20W
- Voltage: 120-277V, 50/60Hz
- Dimming: 0-10V dimming to 5%
- CRI: 80 minimum
- Beam Angle: 60° (wide flood)
- Ingress Protection: IP65
- Operating Temperature: -40°F to 104°F (-40°C to 40°C)
- Rated Life: 60000 hours L70 (calculated L70 up to 135000 hours)
- Housing: Die-cast aluminum; Lens: gasketed tempered glass
Common Uses
Ideal for retail storefronts, multifamily properties, hospitality sites, healthcare campuses, educational facilities, and general building exterior lighting where architectural style and dependable outdoor performance are required.
