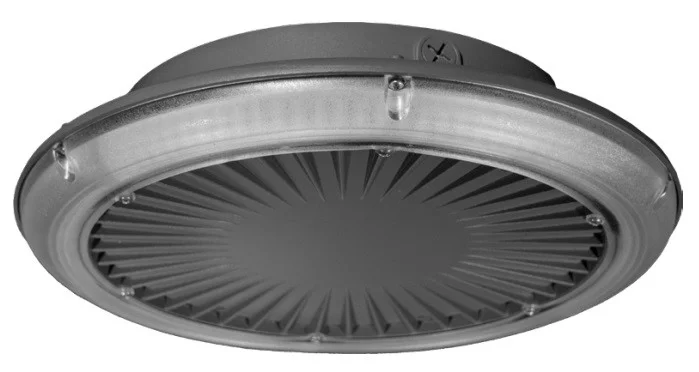

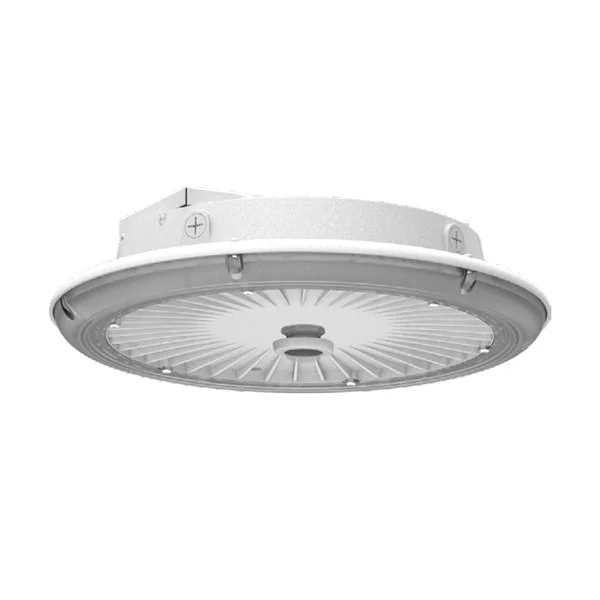

UFO Outdoor LED Parking Garage, 58W or 75W

SERIES SUMMARY

DESIGN FEATURES

• Low profile die-cast aluminum housing
• Factory Select Finishes: Bronze (BRZ), Black (BLK), Silver (SLV), and White (WHT)
• Custom colors finishes available 1
• Frosted Polycarbonate Lens (std.)
• T5 Wide distribution or T5 narrow lowbay optic (LB) (concentrated distribution for atrium or exit/egress applications)
• Up to 10% uplight standard eliminates cave effect

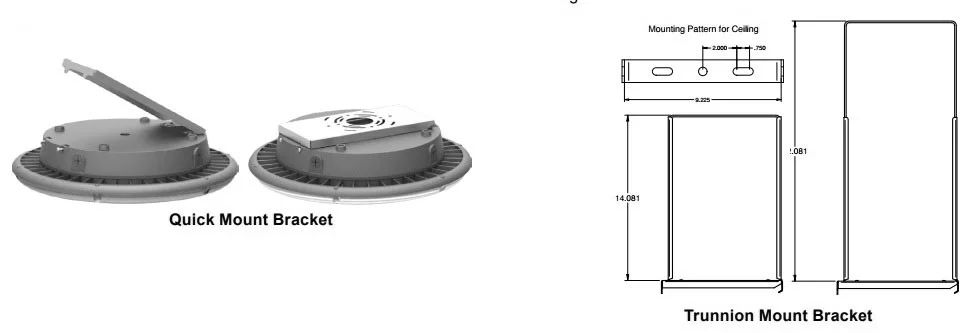

• Mounting: Quick surface mount bracket (std.), 1/2″ pendant (std.), or optional trunnion mount bracket
• Four ½” coin plugs on sides for conduit or photocell
• 120–277V Universal Voltage or 347–480V High Voltage
• 0–10V Dimmable Driver (std.)
• Battery backup & cold weather battery options available
• PIR Occupancy, Photocell & Bi-Level Dimming sensors available
• Wireless control integrated luminaire
• 3000K, 4000K & 5000K CCT
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000 hrs @ 25°C per TM-21-11
• IP66 Rated Luminaire
• 5 Year Warranty (std); 10 Year Warranty Optional
• ETL Listed for Wet Locations
• DesignLights Consortium® Premium Qualified Luminaire

SUITABLE APPLICATIONS

• Parking Garages
• Canopies
• Entrance Way
