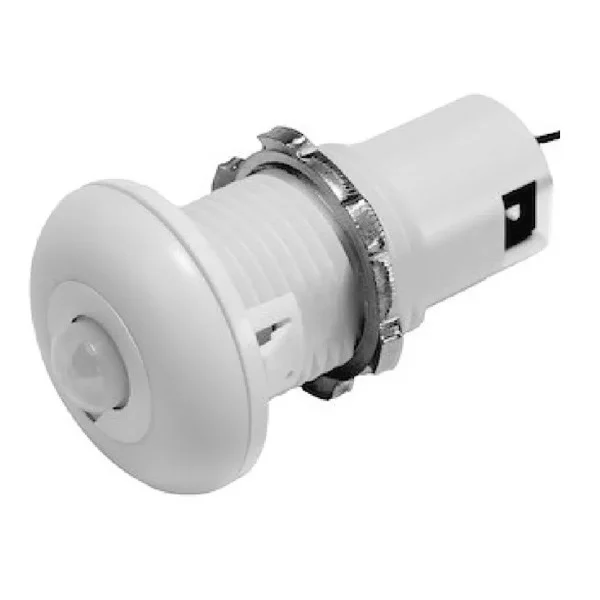

The Halco TruBlu™ Mesh Compact Wireless Sensor-Controller is a low bay-ready control solution that combines occupancy sensing, daylight harvesting, and wireless dimming in one compact device. As part of Halco’s TruBlu controls lineup, it enables scalable Bluetooth Mesh lighting control for modern energy-saving projects.
Key Features and Benefits
- Combines PIR occupancy sensing and daylight response to automate lighting and reduce energy waste.
- Bluetooth® NLC certified for interoperable wireless mesh deployments across compatible systems.
- Supports smooth 0-10V dimming plus active-high relay/load signaling for flexible fixture control.
- Compact body mounts through a standard 1/2″ knockout for fast retrofit or OEM integration.
- Commissioning and adjustments are handled through the TruBlu web portal or iOS app.
- Enables advanced functions like zoning, trim settings, scheduling, and energy monitoring when paired with a TruBlu gateway.
Specifications
- Voltage: 12-24VDC input
- Output Voltage Range: 0-10VDC dimming output | 10-22VDC active-high load control output
- Output Current: 30mA dimming sink | 30mA load control
- Power Consumption: 50mA
- Mounting: 1/2″ knockout, threaded body or clip-secured
- Sensor Coverage: 360° pattern, 15′ radius
- Mounting Height: 8′-15′
- Wireless Range: up to 100′
- Max Ambient Temperature: 70°C (158°F)
Common Uses
Ideal for low bay luminaires in commercial and light industrial spaces, including warehouses, utility areas, back-of-house corridors, and retrofit fixture upgrades requiring wireless occupancy/daylight control.
