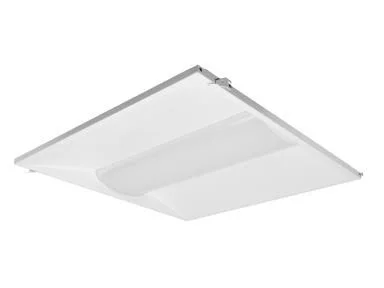

MaxLite’s TRKE22D20WCS2P Troffer Retrofit Kit offers an economical solution to upgrade existing fixtures to LED technology, featuring selectable wattage and color temperature.
Key Features and Benefits
- 3 Wattage Selectable: 20W, 25W, 30W
- CCT Selectable: 3500K, 4000K, 5000K
- Quick installation without breaking the ceiling plenum
- 0-10V Dimming (10-100% Dimming Range)
- Advanced “UniGlo” optics for uniform brightness
- DLC qualified at 125 Lumens per watt
Specifications
- Size: 2’x2′
- Nominal Wattage: 20W, 25W, 30W
- Lumens Delivered: 2720, 2920, 2760
- Nominal Efficacy: 136, 146, 138 lm/W
- Color Temperature: 3500K, 4000K, 5000K
- CRI: ≥ 80
- Input Voltage: 120-277V AC
- Power Factor: ≥ 0.87
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Certification: ULus listed, FCC, RoHs Compliant
- Environment: Suitable for damp locations
- Warranty: 10 years
Common Uses
Ideal for high-end hospitality, commercial, and retail applications.
