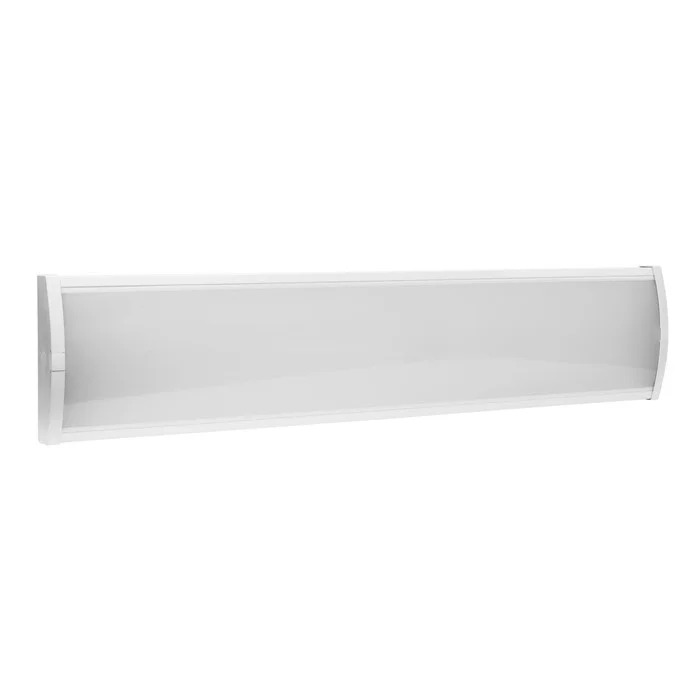

The Topaz Southwire LWRAPW4 series is a modern LED wraparound fixture designed to simplify retrofit upgrades while improving light quality and efficiency. Its 10″ wide body helps cover existing fixture footprints, making it a practical choice for commercial and institutional spaces.
Key Features and Benefits
- Power and CCT selectable design supports flexible lighting layouts from one fixture platform.
- Wide 10″ housing helps conceal marks from older fixtures for cleaner retrofit results.
- Smooth 0-10V dimming down to 10% enables better energy control and occupant comfort.
- Durable white steel body with frosted polycarbonate lens delivers a sleek look with softened light distribution.
- Side 1/2″ knockouts streamline conduit and wiring access for faster installation.
- Long 50,000-hour life reduces maintenance cycles and replacement costs.
Specifications
- Lumen Output: 3657|4657|5689
- Wattage: 50W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Rated Life (70 Hours): 50000
- Dimming Type: 0-10V
- Primary Material: Steel
- Lens Material: Polycarbonate
- Finish / Color: White
- Form Factor: Linear
Common Uses
Commonly used in corridors, utility rooms, storage areas, schools, offices, and other indoor commercial spaces where a low-profile linear fixture is needed for new installs or retrofit replacements.
