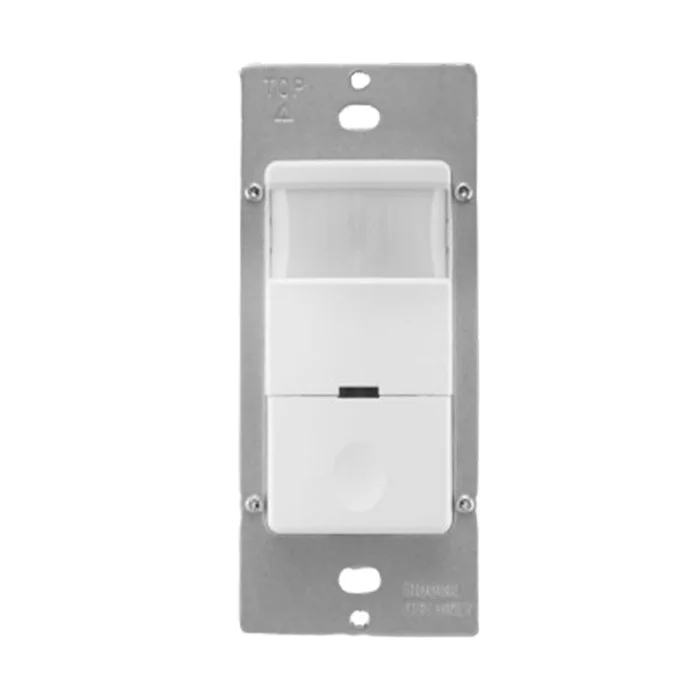

The TEELIO PT-1WS-MS-BT-A is a smart AC wall switch that combines manual push-button control with integrated PIR occupancy sensing for Bluetooth-enabled lighting systems. As part of the TEELIO control lineup, it offers a practical retrofit path for upgrading standard wall switches to wireless, app-connected control.
Key Features and Benefits
- Built-in PIR sensor adds automatic occupancy-based ON/OFF control for improved energy savings.
- Bluetooth 5.0 connectivity enables quick pairing and control of one or multiple lighting groups through the TEELIO app.
- Designed for line-voltage retrofit applications, making upgrades from conventional wall switches straightforward (neutral required).
- Reliable indoor construction with UL 94-V0 housing and IP20 protection for commercial and residential interior spaces.
- Compliant with UL60730, UL1376, RoHS, and JA8-2022-E requirements, backed by a 5-year warranty.
Specifications
- Input Voltage: AC 120-277V, 50/60Hz
- Input Current: 10mA max
- Bluetooth Transmit Range: 100′ max
- Radio Frequency: 2.4GHz ± 75MHz
- Operating Temperature: 32°F to 131°F
- Storage Temperature: -22°F to 185°F
- IP Rating: IP20
- Color: White
Common Uses
Ideal for offices, corridors, classrooms, utility rooms, and other indoor areas where users need both local wall-switch operation and wireless group control of compatible Bluetooth lighting fixtures.
