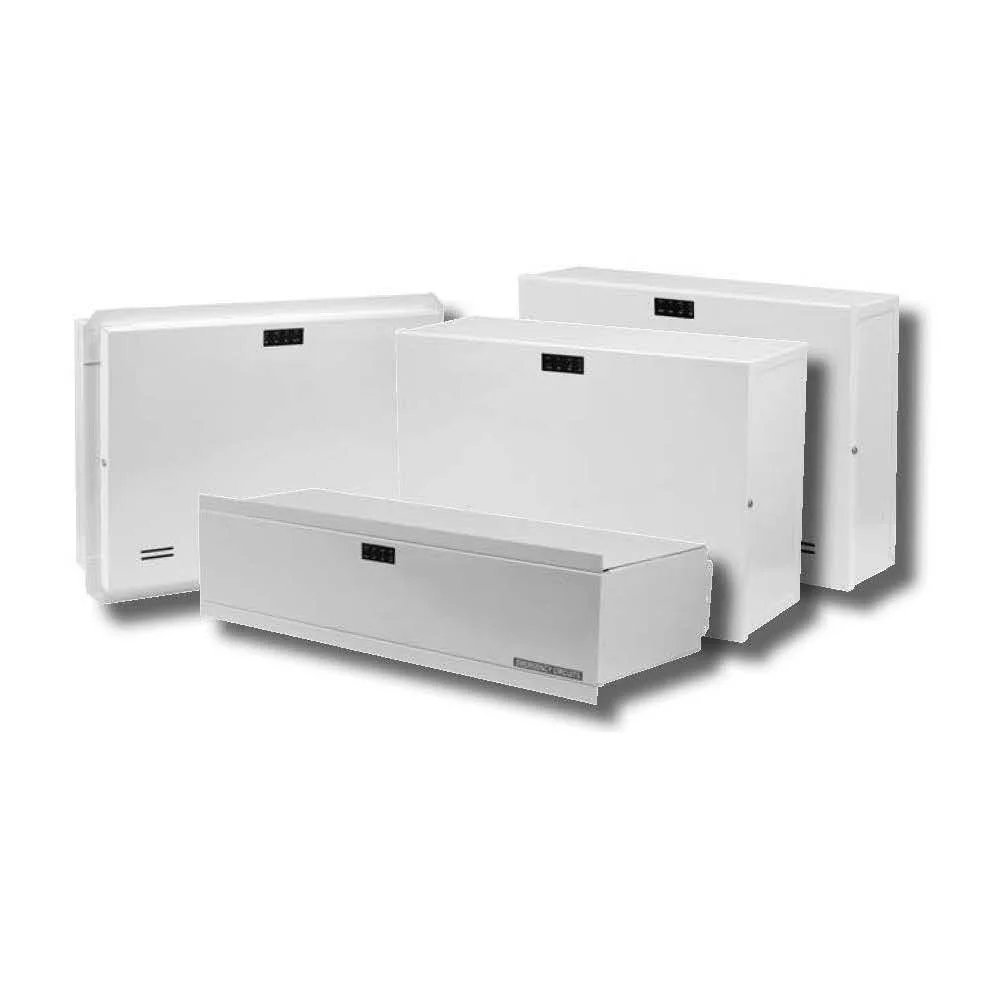

Compact 110W inverter system with selectable mounting options, providing 100% lumen output for emergency lighting applications.
Key Features and Benefits
- Sinusoidal output eliminates compatibility problems with LED drivers and ballasts.
- Universal 120/277VAC, 60Hz input/output.
- Unit capacities up to 220W/250VA.
- Soft Start design reduces fixture inrush current.
- Surface, recessed, or T-Grid mount models available.
- Provides power to the input side of the fixture, eliminating incompatibility issues.
- Normally-ON and/or Normally-OFF load output.
- Long life, maintenance-free lead-calcium battery.
- Momentary test switch for user-initiated system tests.
Specifications
- Power Capacity: 110W, 125VA.
- Input/Output Voltage: 120/277VAC.
- Efficiency: 98% at full rated load.
- Output Frequency: 60Hz ±0.3Hz during emergency cycle.
- Output Distortion: Less than 3% THD (linear load).
- UL924 Listed and FCC Part 15 Class A Compliant.
- Operating Temperature Range: 20°C to 30°C.
Common Uses
Ideal for emergency lighting applications in commercial, industrial, and residential settings, providing reliable power to existing lighting fixtures and ensuring occupant safety during power outages.
