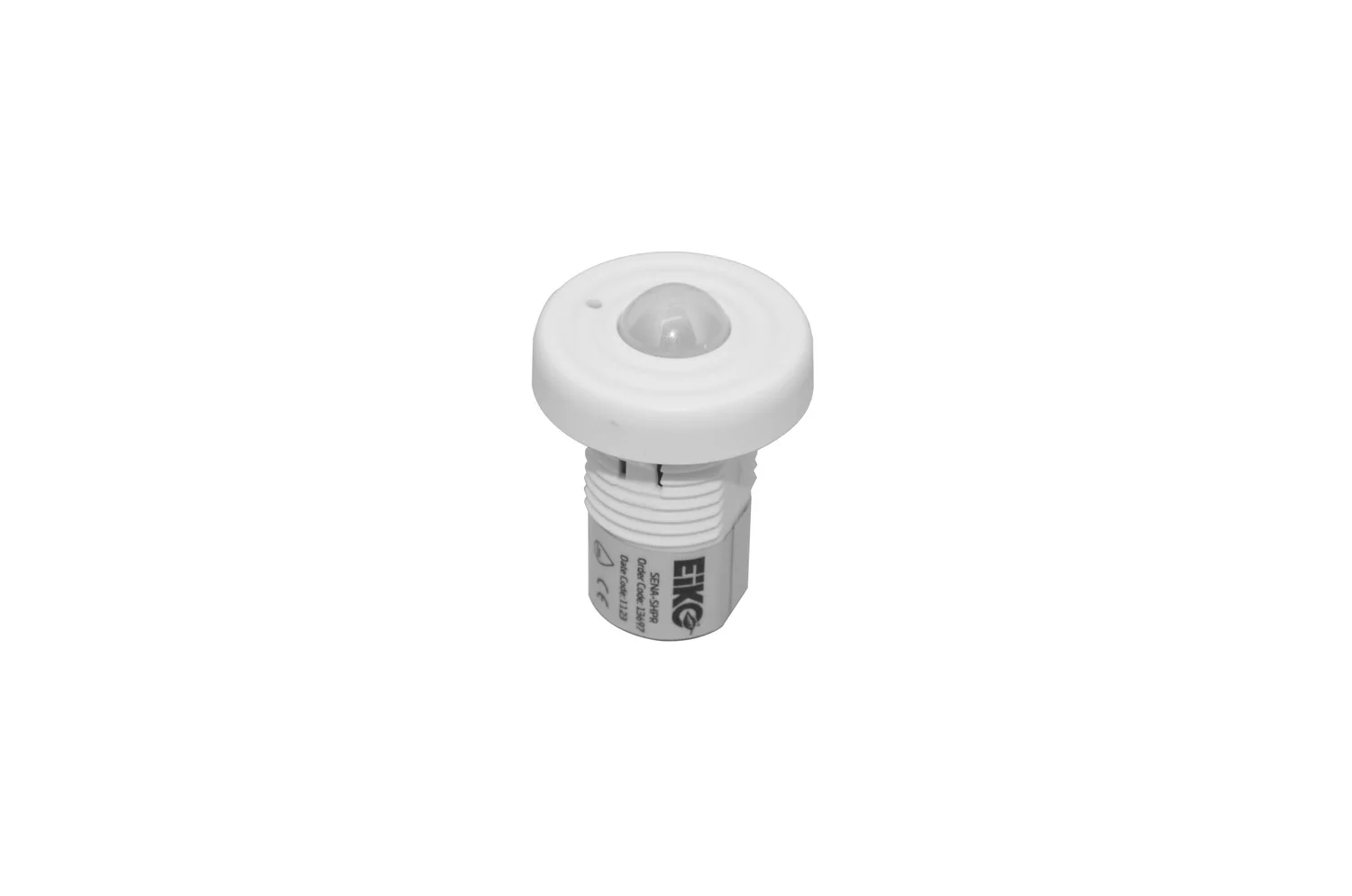

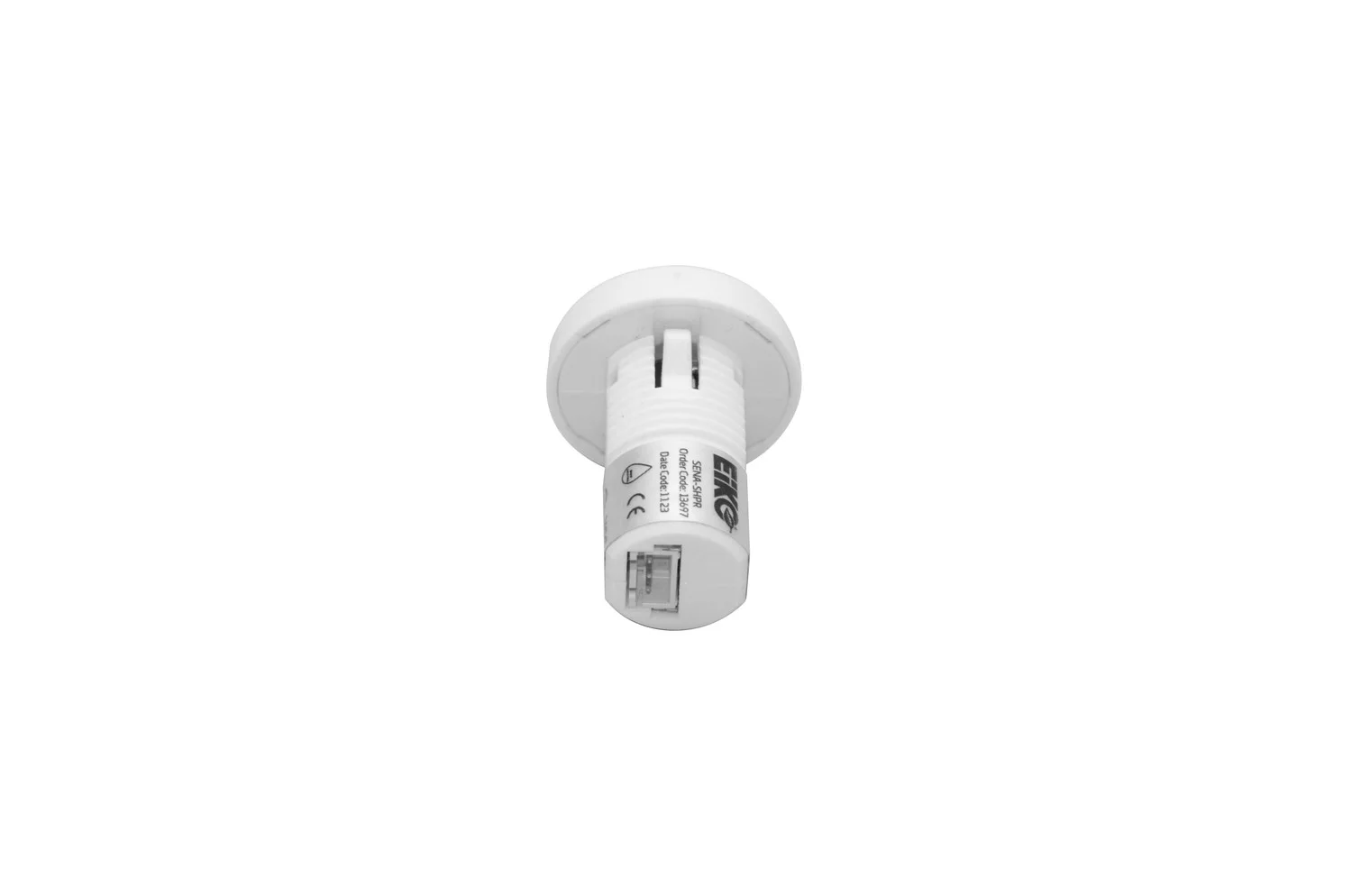

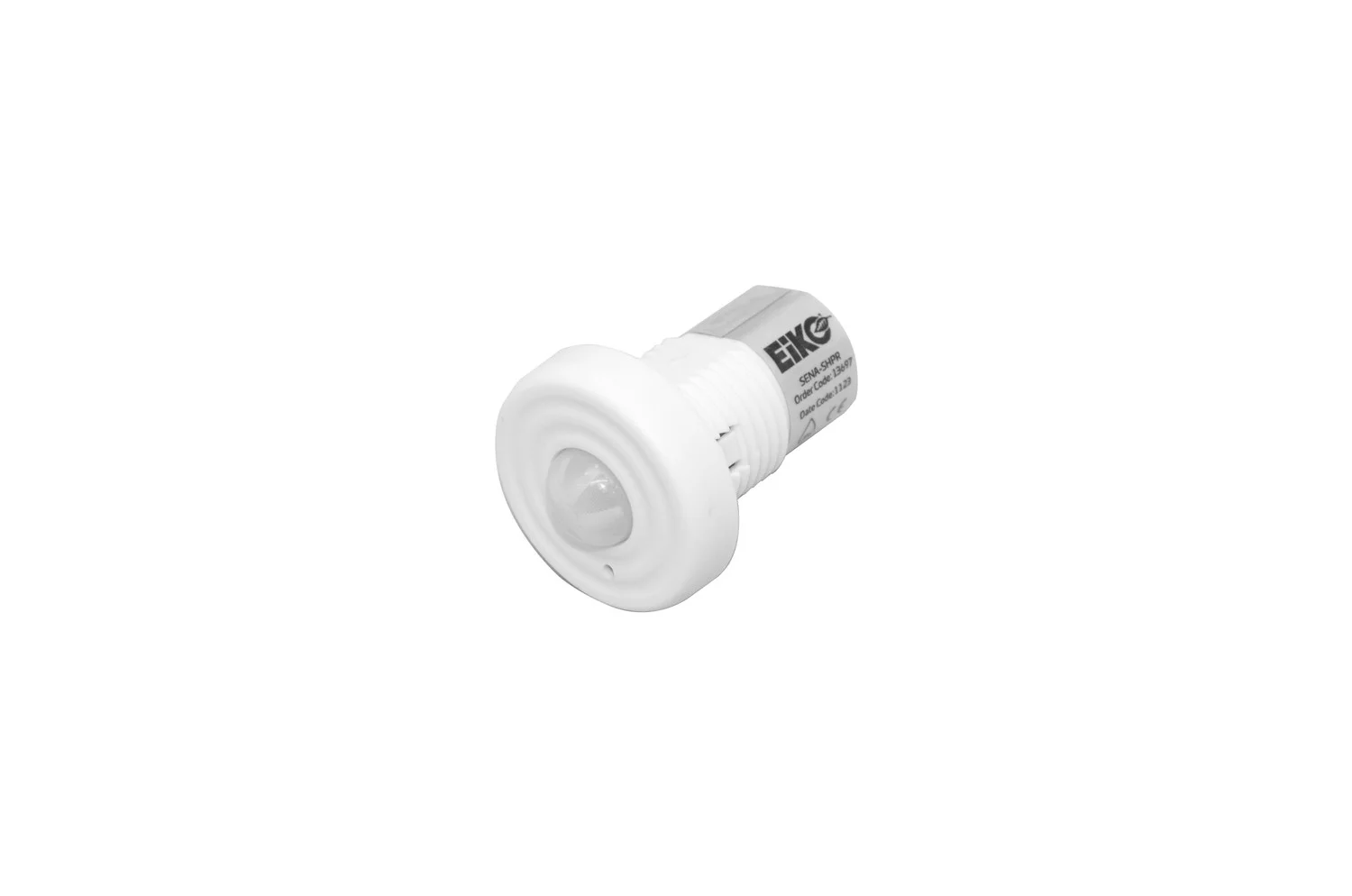

Snap-in PIR Motion Sensor with selectable color temperature and adjustable lumen outputs. Ideal for customized lighting control in various settings.
Key Features and Benefits
- Snap-in PIR Motion Sensor sensor for fixture compatibility
- Features passive infrared technology for automatic on/off based on occupancy
- Field adjustable settings: brightness, dim level, sensitivity, hold time, and dim time
- Dual ambient and daylight sensing technology for improved accuracy
- Daylight harvesting for energy efficiency
- Occupancy detection can be disabled for photocell-only function
- Photocell function for dusk-to-dawn or two-stage dimming/midnight dimming
- Remote commissioning support
Specifications
- Mounting Height: 8-12ft
- 0-10V dimming bi-level dimming
- 360° Coverage Pattern
- Input voltage: 12-14VDC
- Input current: 50mA
- Remote control: SEN5A-ACT (purchased separately)
- Ambient operating temperature: -4°F to 140°F (-20°C to 60°C)
- White polycarbonate housing
- Snap-in installation
- Factory Default Settings: Brightness: 100%, Sensitivity: 75%, Hold Time: 10 minutes, Daylight Function: Disable, Dim level: 30%, Dim Time: 1 minute
- 5-Year limited warranty
Common Uses
Offices, Classrooms, Restrooms, Hallways, Storage Rooms, Stairwells
