Slim Strip 4ft luminaire with selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen outputs (3462 to 6590 lumens).
Key Features and Benefits
- Ultra Slim & Highly Adjustable Strip Luminaire
- Steel Housing with White Powdercoat Finish
- High Transmission Impact Resistant Frosted Acrylic Lens
- Suspended, Surface, Wall, and Pendant Mounting Options – Continuous Row Available
- Field Selectable or Factory Set Lumen Output – 2,000 to 12,000 Delivered Lumen Range
- Field Selectable CCT – 3500K, 4000K, & 5000K CCT
- High Efficacy – Up to 162 lm/W
- >80 Color Rendering Index (CRI)
- 0-10V Dimmable Driver (100% to 10%)
- 120-277V Universal Voltage
- Factory Installed Battery Backups From 6W-12W
- 347V or 480V Step down Transformers
- -4°F to 122°F Ambient Temperature Range
- 5 Year Warranty (standard)
- DesignLights Consortium® Standard Qualified Luminaire
Specifications
- Construction: Steel housing body with a white powdercoat finish
- Optics: High Transmission field-removable lens design
- Controls: Factory installed Basic Sensor options available
- Certification: ETL Listed to US and Canadian safety standards. Suitable for damp locations. Title 24 Compliant with sensor option.
- Electrical: Class 2 LED light engine for high efficacy and long life. Calculated L70 > 100,000 hrs. Power Factor > 0.90. Standard 120-277 Vac 0-10V dimmable (10%-100%) with optional 347 & 380 Vac step down transformers. Optional emergency battery backups available.
- Installation: Designed for a variety of mounting solutions including surface, wall, pendant, and suspended. Can be mounted in continuous rows.
- Warranty: 5 Year Warranty Standard; 10 Year Warranty Optional.

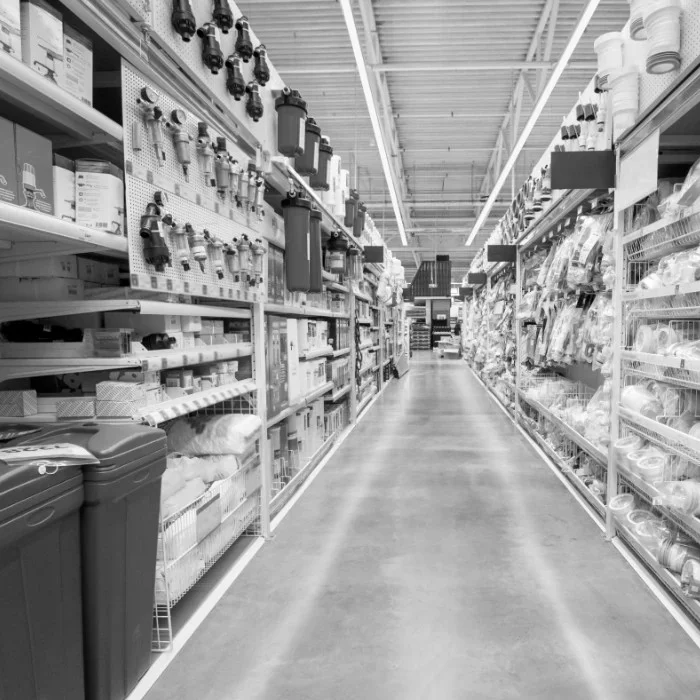

Common Uses
Education, Healthcare, Retail, Warehouse, Schools, Grocery Store, Hallways, Distribution Centers, Manufacturing Facilities
