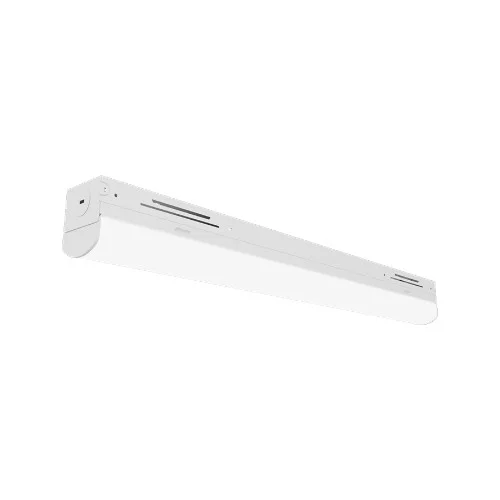

Ultra Slim & Highly Adjustable 2ft strip luminaire with selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen outputs (2068/2724/3335 lm).
Key Features and Benefits
- Ultra Slim & Highly Adjustable Strip Luminaire
- Steel Housing with White Powdercoat Finish
- High Transmission Impact Resistant Frosted Acrylic Lens
- Suspended, Surface, Wall, and Pendant Mounting Options – Continuous Row Available
- Field Selectable or Factory Set Lumen Output – 2,000 – 12,000 Delivered Lumen Range
- Field Selectable CCT – 3500K, 4000K, & 5000K CCT
- High Efficacy – Up to 162 lm/W
- >80 Color Rendering Index (CRI)
- 0-10V Dimmable Driver (100% – 10%)
- 120 – 277V Universal Voltage
- Factory Installed Battery Backups From 6W-12W
- 347v or 480v Step down Transformers
- -4°F to 122°F Ambient Temperature Range
- 5 Year Warranty (standard); 10 Year Warranty Optional
- DesignLights Consortium® Standard Qualified Luminaire
Specifications
- Steel housing body with a white powdercoat finish for rigidity and durability
- High Transmission field-removable lens design
- Factory installed Basic Sensor options available
- ETL Listed to US and Canadian safety standards
- Suitable for damp locations
- Title 24 Compliant with sensor option
- Class 2 LED light engine for high efficacy and long life
- Calculated L70 > 100,000 hrs
- Standard 120-277 Vac 0-10V dimmable (10%-100%)
- Optional 347 & 380 Vac step down transformers
- Optional emergency battery backups available
- Lumen and CCT Selectable fixtures
Common Uses
Education, Healthcare, Retail, Warehouse, Schools, Grocery Store, Hallways, Distribution Centers, Manufacturing Facilities
