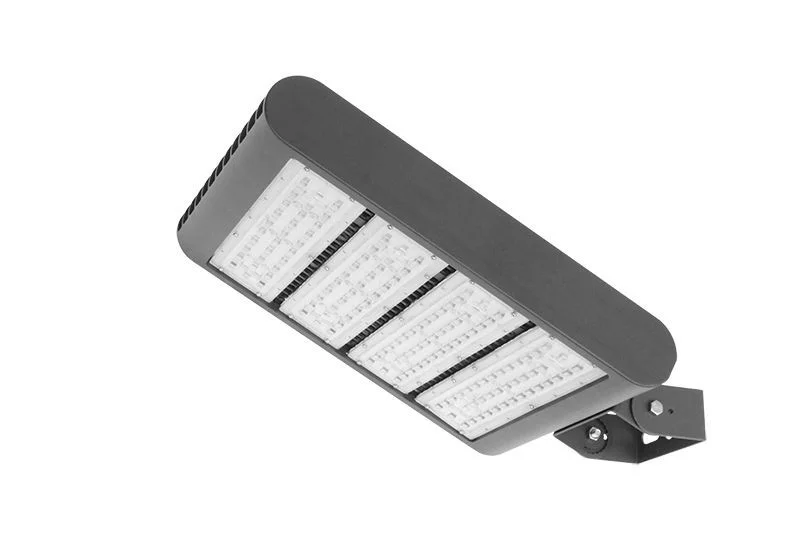

The Westgate LF3 Flood Light Series with yoke mount is a high-output outdoor luminaire designed for dependable performance in demanding commercial environments. As part of Westgate’s flood lighting lineup, it combines robust construction, efficient LED output, and flexible control compatibility for broad area illumination.
Key Features and Benefits
- Heavy-duty die-cast aluminum body with powder-coated dark bronze finish for long-term outdoor durability
- 0-10V dimming support enables better energy management and lighting control integration
- Type II TIR optic helps direct light effectively for pathways, perimeters, and site lighting layouts
- Wet-location and IP65 construction supports reliable operation in rain and harsh weather
- UL Listed and DLC Standard qualified for trusted safety and efficiency compliance
- Backed by a 7-year warranty for added project confidence
Specifications
- Lumen Output: 30000
- Wattage: 300W
- Voltage: 120-277V
- Frequency (Hz): 60
- Color Temperature: 3000K
- CRI: 82|84
- Power Factor: 0.9|0.97
- Efficacy (lm/W): 100
- Rated Life (70 Hours): 70000
- Distribution Type: Type II
- Dimming Type: 0-10V
- IP Rating: IP65
- Max Ambient Temperature: 104°F
- Operating Temperature: -40°F to 104°F
Common Uses
Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Also well-suited for installations using motion sensors or other instant on/off control strategies.
