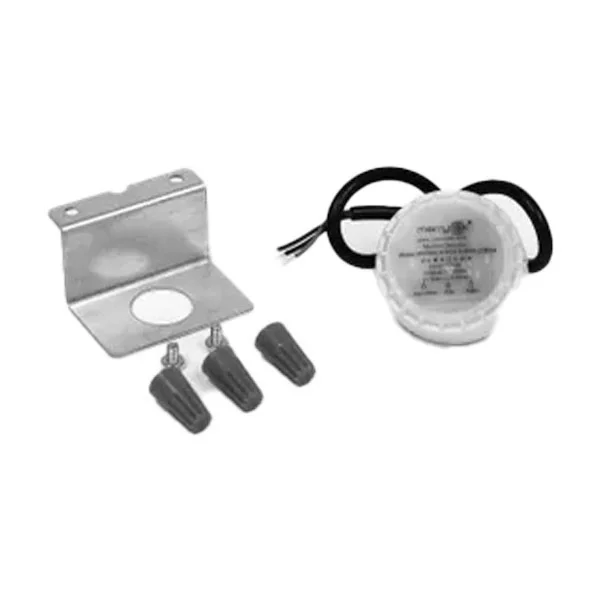

Compact design motion sensor with adjustable detection modes, suitable for industrial lamps, offering 0-10V dimming and daylight priority functions.
Key Features and Benefits
- 12/24V DC input, compatible with DC systems or LED power supplies with auxiliary power output.
- 0-10V dimming port with 3 or 2 step dimming function.
- Patented sensor antenna design for high sensitivity and interference immunity detection.
- Compact design ideal for industrial lamps, with mounting flexibility at the edge or center of UFOs.
- Maximum installation height of 15m, suitable for most warehouses.
- Adjustable transmitting angle of the patented remote control according to mounting height.
- Override function and adjustable occupancy light level with Dim+/Dim-.
- Daylight priority function to optimize energy usage.
Specifications
- Operating Voltage: 12/24V DC ±1V.
- Stand-by Power: <0.3W.
- Operating Frequency: 5.8 GHz ±75 MHz, ISM Band.
- Detection Angle: 150° (wall mounting), 360° (ceiling mounting).
- IP Rating: IP65.
- Lifespan: 50,000 hours.
- Certifications: CE, RoHS compliant.
Common Uses
Ideal for industrial lighting applications, particularly in environments with metal reflective surfaces and large warehouses.
