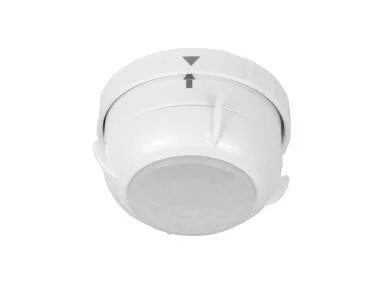

Introducing the Silvair Network Node Round with PIR Motion Sensor and Daylight Harvesting, a key component in advanced lighting control for commercial environments.
Key Features and Benefits
- Luminaire Level Lighting Control (LLLC) enabled with wireless Bluetooth NLC
- Simple ‘Plug-and-Play’ Connection with USB-C receptacle
- Easy Commissioning via Silvair App available on iOS and Android
- Local Bluetooth Network requires no gateway
- Occupancy/Vacancy and Daylight Harvesting capabilities
- Individual Addressability and/or Grouping
- Multi-level dimming and scene creation
- Time clock scheduling for customized lighting control
- High-Trim/Tuning for maximum light level customization
- Vandalism-resistant with locking screw
- 5 Year Warranty
Specifications
- Dimensions: Ø63mm x 48.2mm
- Weight: 1.92oz (55g)
- Connector Port: USB-C
- Operating Voltage: 12-24Vdc
- Operating Current: max 15mA
- Sinking Current: max 25mA
- Control Output: Analog 0-10V (Linear)
- Radio Frequency: 2.4GHz ± 75MHz
- Wireless Standard: Bluetooth NLC v2.30+
- Cybersecurity: ioXt Certified
- Mesh Range: 100ft node-to-node, 50ft node-to-device
- Safety: cULus Listed
- FCC: 47 CFR Part 15, Subpart C 15.247
- Operating Temperature: -40°F to 130°F / -40°C to 55°C
- Color: White
Common Uses
Ideal for industrial, warehouse, school, and commercial applications where advanced lighting control is essential.
