Availability: 8 in stock

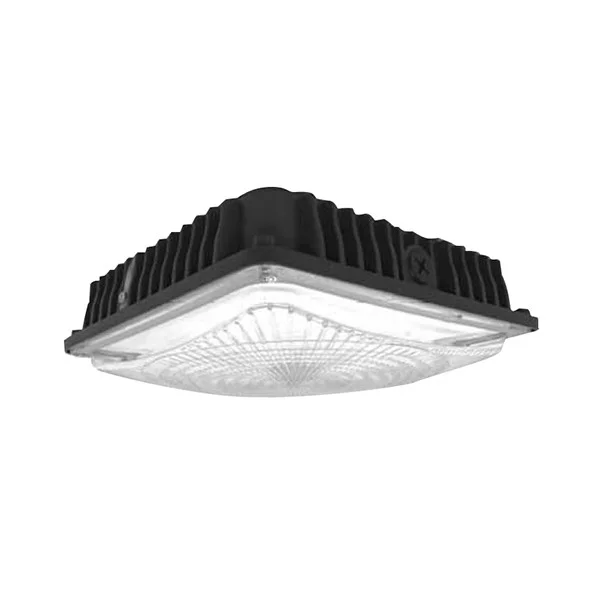

ATG’s Sector Canopy Light is a high-performance exterior luminaire designed to provide safe, reliable illumination from low to medium ceiling heights. The streamlined design is ideal for gas stations, parking garages, stairwells, entryways, and building overhangs. The Sector Canopy is tested for wet location use and is IP65 rated. Models are available in 40W models with color temperatures of 4000K, and 5000K.
SERIES SUMMARY
| Model No. | Wattage | Input Voltage | Efficacy(Lm/W) | Lumens | CRI | Dimensions |
| SCP-28 | 28 | 100-277 | 115 | 3,220 | > 70 | 9.5″ x 9.5″ x 3.1″ |
| SCP-40 | 40 | 100-277 | 115 | 4,600 | > 70 | 9.5″ x 9.5″ x 3.1″ |
| SCP-60 | 60 | 100-277 | 115 | 6,900 | > 70 | 9.5″ x 9.5″ x 3.1″ |
| SCP-90 | 90 | 100-277 | 115 | 10,350 | > 70 | 9.5″ x 9.5″ x 3.1″ |
FEATURES
TECHNICAL SPECIFICATIONS
OPTICS
The fixture is available with the standard color temperatures of 5000K, ideal for outdoor illumination. 4000K and 6000K models are available upon request.
ELECTRICAL
Input voltage is a standard 100~277V. Fixture lifespan is rated for 69,000 hours. Luminous efficacy is an excellent 120 Lm/W and the luminaire is available in 40W.
CONSTRUCTION
The Sector Canopy is manufactured within precise tolerances from die-cast aluminum. The luminaire utilizes a silicon gasket and is IP65 rated.
MOUNTING
The slim design provides for multiple mounting options, making it a particularly versatile fixture. The Sector Canopy mounts directly over a 4” recessed outlet box.
