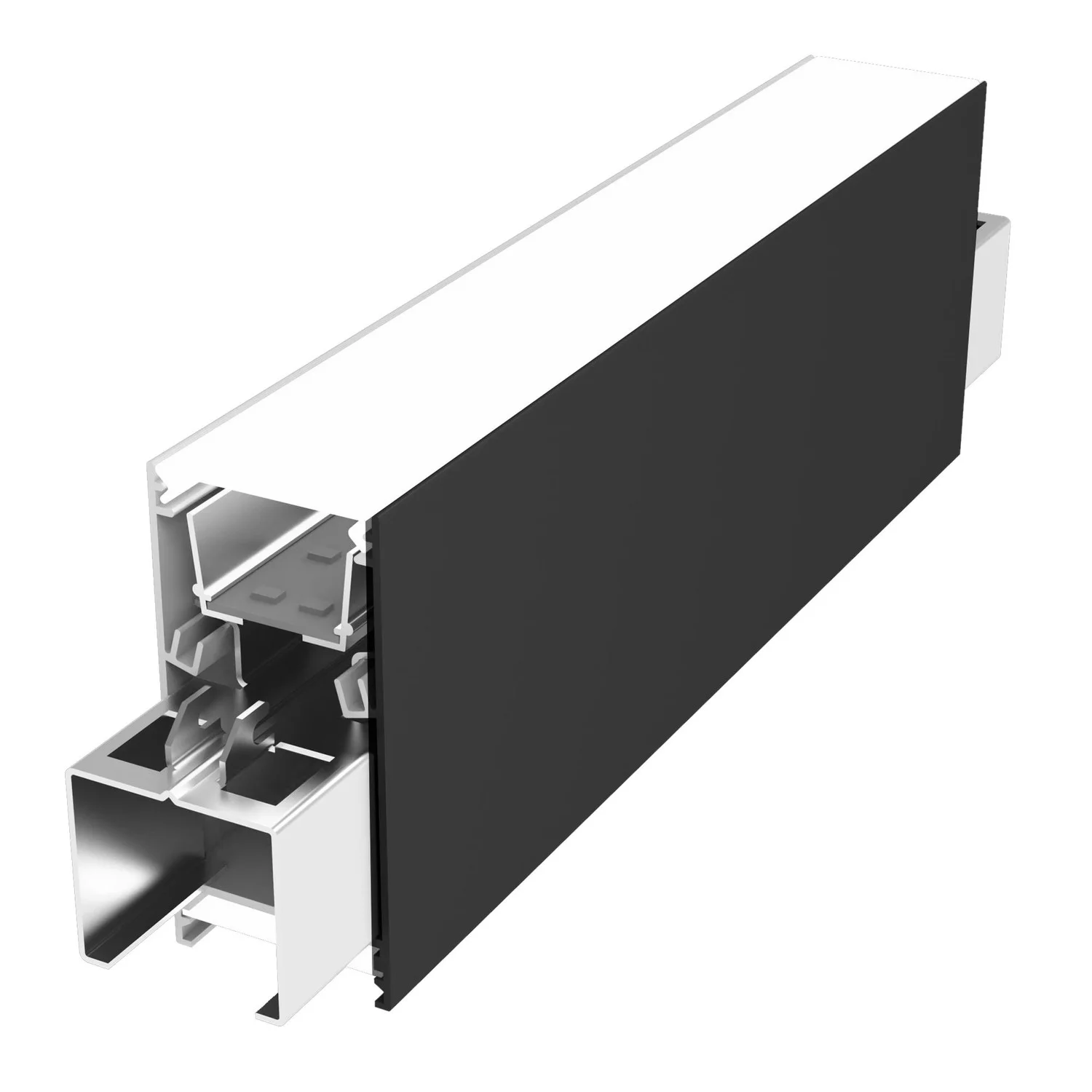

The SCX1.5 9in Module is a versatile component of the Westgate SCX Series, designed for seamless integration into architectural linear lighting systems. With its compact 9-inch length and 1.5-inch width, this module delivers impressive flexibility and performance for modern spaces.
Key Features and Benefits
- Selectable color temperature (2700K, 3000K, 3500K, 4000K, 5000K) for tailored ambiance
- Adjustable lumen output from 508lm to 660lm to match lighting needs
- Low profile, modern design for clean architectural lines
- Seamless linkability for custom linear configurations
- Opal polycarbonate lens for smooth, glare-free illumination
- Long 50,000-hour rated life reduces maintenance
- Multiple mounting options: recessed, surface, wall, or suspended
- IP54 rated for durability in demanding environments
- Compatible with other SCX Series modules for ultimate design flexibility
Specifications
- Length: 9 inches
- Width: 1.5 inches
- Lumens: 508lm | 575lm | 616lm | 660lm
- Selectable Color Temperature: 2700K | 3000K | 3500K | 4000K | 5000K
- CRI: ≥80
- Voltage: 120-277VAC
- Wattage: Not specified for module
- Rated Life: 50,000 hours
- IP Rating: IP54
Common Uses
Perfect for offices, hotels, corridors, retail spaces, lobbies, conference rooms, educational facilities, and any modern interior requiring customizable linear lighting.
