Availability: 7 in stock

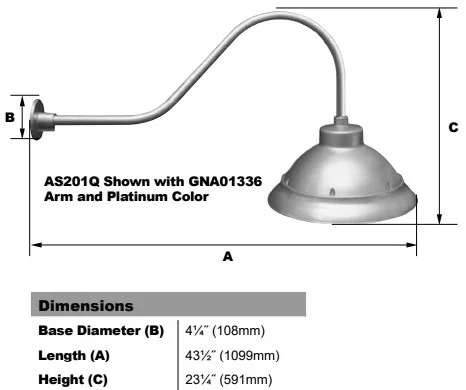

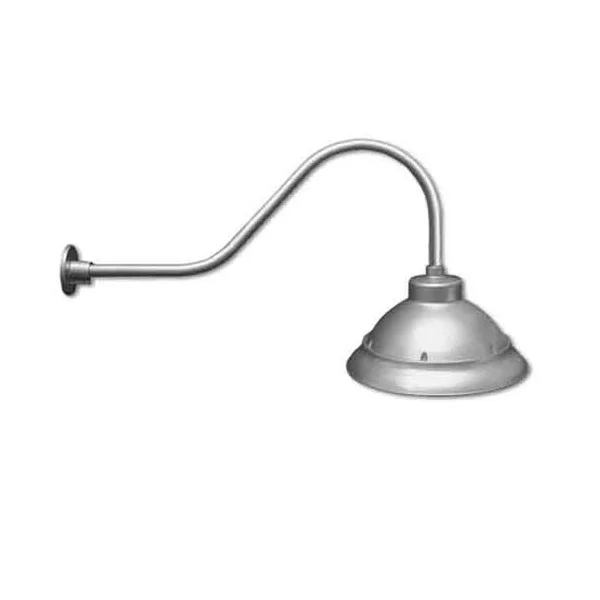

The DuraGuard AS20 LEDicated Sculptor Small Bell Gooseneck LEDlight luminaire is available with 5 Gooseneck arms of various lengths and is designed to replace HID lighting systems up to 175w MH or HPS. This decorative fixture with prismatic spread lens and glare shade is ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Designed for architectural wall mounting up to heights of 20 feet based on light level and uniformity requirements.
ACCESSORIES
| Model # | Description |
| DG-GNA01336 | Classic Hook Gooseneck, 36″ Standard Length |
| DG-GNA02330 | Straight Arm 30″ Standard Length |
| DG-GNA03330 | Straight Offset Arm, 30″ Standard Length |
| DG-GNA04330 | Straight Rise Arm, 30″ Standard Length |
| DG-GNA05330 | Round Hook Arm, 30″ Standard Length |
DESIGN FEATURES
HOUSING
Heavy Duty Die Cast Aluminum Housing with Integral Heat Sinking, ¾Ã NPS Threaded Mount. Includes Spun Aluminum Shade, Field Removable.
LISTING & RATINGS
CSA Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment
FINISH
Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
LENS
Clear Prismatic Polycarbonate Lens
MOUNTING
Fixed Mount or Adjustable Swivel with ¾Ã NPS Threads.
DURALED LED
Aluminum Boards
WATTAGE
Array: 23w, System: 26.3w; (175w HID Equivalent.)
DRIVER
Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
WARRANTY
5-Year Warranty for -40°C to +50°C Environment.
CONSTRUCTION
Heavy-Duty ¾Ã Aluminum Arms with ¾Ã NPS Threads on Fixture Mounting End.
FINISH
Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
MOUNTING OPTIONS
Mount with ¾Ã Square or Round Mounting Plates.
