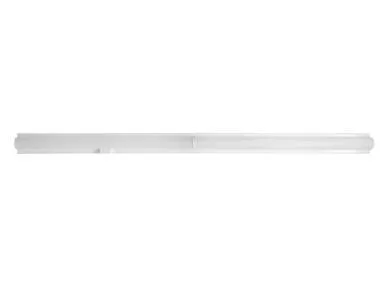

The Retrofit Strip Kit Gen 2 retrofits existing 4′ and 8′ fluorescent strips and industrial fixtures to LED in as little as five minutes. It is the industry’s fastest LED strip retrofit kit, offering 3 CCT and 3 wattage options, and MaxLite’s patented c-Max Controls Ready USB-C port for in-field Plug & Play controls.
Key Features and Benefits
- CCT and Wattage selectable (9 possible combinations with each fixture)
- Controls Ready – can be paired with the new cMax controls nodes
- 0-10V dimming standard
- CRI > 80
- Universal voltage 120-277V
- L70 lumen maintenance of 100,000 hours
- Sheet metal (steel) housing and Frosted PC lens for smooth diffused distribution
- Operating temperature: -4°F to 122°F, except fixtures with EM option
- On EM mode, the fixture CCT will be set to 5000K
- Default setting for WCS models is set to lower wattage and 4000K
- On EM mode, the fixture output a minimum of 1070lm on 4ft model and 1000lm on 8ft model for 90 minutes, when fully charged
Specifications
- Power Consumption: 65W/75W/90W
- Lumens Delivered: Up to 12,330 lm
- Efficacy: Up to 144 lm/w
- Color Temperature: 3500K, 4000K, 5000K
- Beam Angle: 120°
- CRI: ≥ 80
- L70 Lumen maintenance: ≥ 100,000 hours
- Dimmability: 0-10V, Range: 10-100%
- Power Factor: ≥ 0.9
- Surge Protection: 2.5KV
- Input Voltage: 120-277V
- Housing/Lens: Sheet metal (steel) housing and Frosted PC lens
- Operating Temperature: -4°F to 122°F (-20°C to 50°C), except EM units (32°F to 122°F)
- Certifications: UL listed, FCC, RoHs Compliant
- Environment: UL listed for Damp location
- Warranty: 10 Years warranty
Common Uses
Ideal for retrofitting existing 4′ and 8′ fluorescent strips and industrial fixtures in commercial and industrial buildings, such as warehouses, factories, and large retail spaces.
