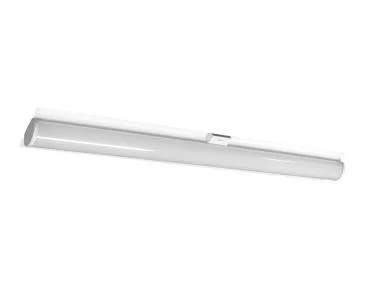

The Retrofit Strip Kit Gen 2 retrofits existing 4-foot fluorescent strips and industrial fixtures to LED in as little as five minutes. Industry’s fastest LED strip retrofit kit, featuring selectable color temperature and wattage options.
Key Features and Benefits
- CCT and Wattage selectable (9 possible combinations)
- Controls Ready – can be paired with cMax controls nodes
- 0-10V dimming standard
- CRI > 80
- Universal voltage 120-277V
- L70 lumen maintenance of 100,000 hours
- Sheet metal (steel) housing and Frosted PC lens for smooth diffused distribution
- Operating temperature: -4°F to 122°F, except fixtures with EM option
- On EM mode, the fixture CCT will be set to 5000K
- Default setting for WCS models is set to lower wattage and 4000K
- On EM mode, the fixture outputs a minimum of 1070lm for 90 minutes, when fully charged
Specifications
- Power Consumption: 23W, 34W, 47W
- Lumens Delivered: 3,330 lm to 6,760 lm
- Efficacy: 134 lm/w to 148 lm/w
- Color Temperature: 3500K, 4000K, 5000K
- Beam Angle: 120°
- CRI: ≥ 80
- L70 Lumen Maintenance: ≥ 100,000 hours
- Dimmability: 0-10V, Range: 10-100%
- Power Factor: ≥ 0.9
- Surge Protection: 2.5KV
- Input Voltage: 120-277V
- Housing/Lens: Sheet metal (steel) housing and Frosted PC lens
- Operating Temperature: -4°F to 122°F, EM units: +32°F to +122°F
- Certifications: UL listed, FCC, RoHS Compliant
- Qualifications: DLC Standard
- Environment: UL listed for Damp location
- Warranty: 10 Years
Common Uses
Ideal for retrofitting existing 4-foot fluorescent strips and industrial fixtures in commercial and industrial settings.
