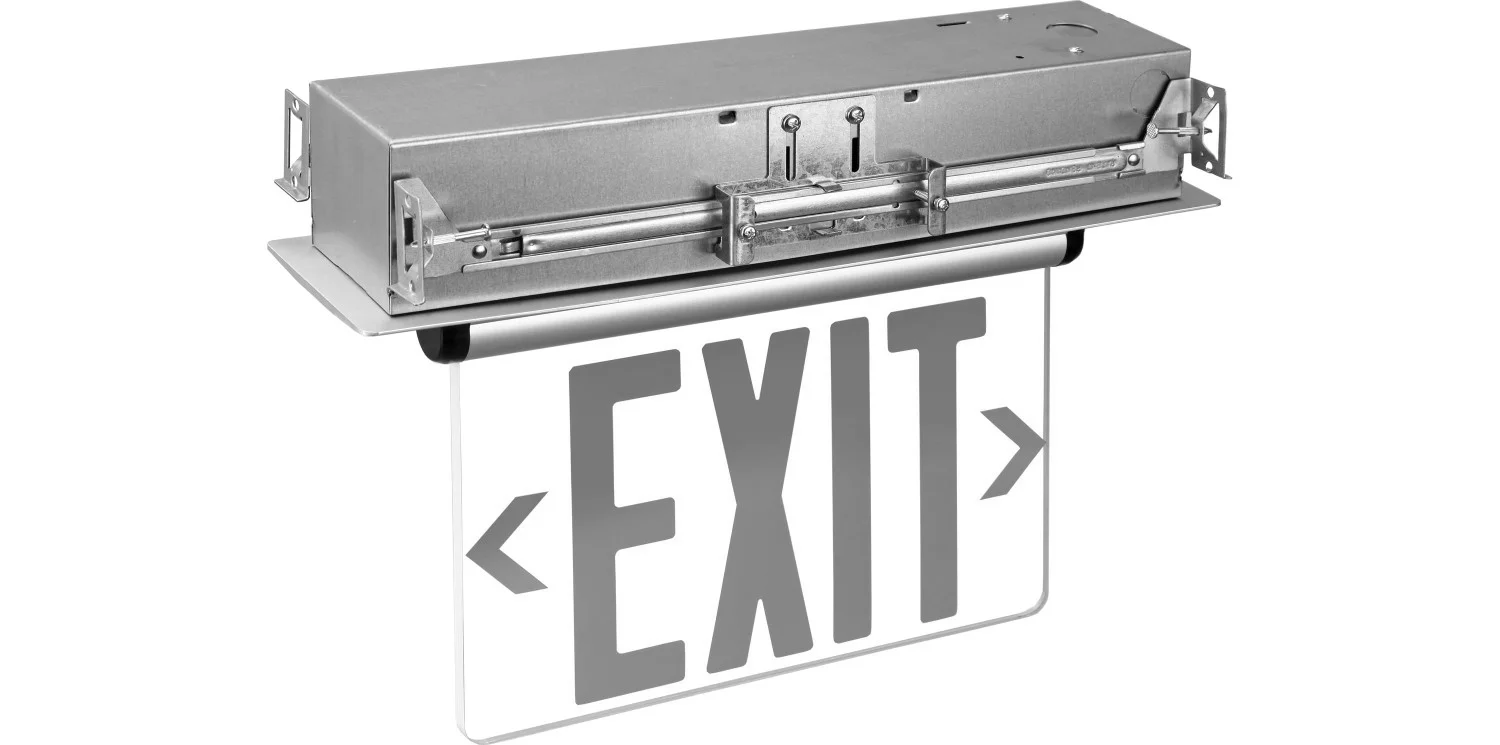

The RP Lighting and Fans RXL33 Series is a recessed edge-lit single-face exit sign designed for clean architectural integration and dependable emergency egress marking. As a self-contained unit with automatic battery transfer, it provides consistent life-safety performance during power interruptions.
Key Features and Benefits
- Low-profile recessed design delivers a sleek, modern appearance for finished ceilings and walls.
- Self-contained emergency operation automatically switches to battery power during outages.
- Includes adjustable bar hangers and a pivoting exit panel (up to 90°) for flexible installation in recessed wall or sloped ceiling applications.
- ETL Listed for damp locations and CEC Title 20 compliant for code-focused projects.
- Backed by a 5-year limited warranty for long-term confidence.
Specifications
- Voltage: 120/277V
- Wattage: <5W
- Battery Type: 4.8V Ni-Cd rechargeable
- Emergency Runtime: 90 minutes
- Operating Temperature: 10°C to 40°C (50°F to 104°F)
- Dimensions (W x D x H): 14-9/16″ x 3-1/8″ x 7-13/16″
- Face Type: Single face, edge-lit acrylic panel
- Rated Life: Estimated 25-year LED lamp life
Common Uses
Ideal for commercial corridors, offices, schools, retail spaces, and other indoor damp-location environments requiring recessed emergency exit signage and reliable battery backup illumination.
