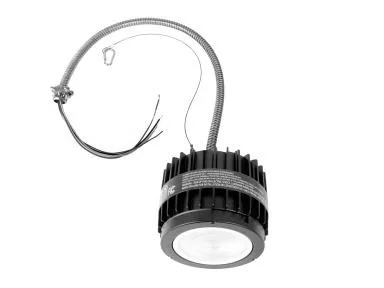

Recessed Architectural Downlight Light Engine, Multi-Mode Dimming, 12/16/20W Selectable, 27/30/35/40/50 CCT Selectable

Introducing the Recessed Architectural Downlight (RAD) series, a modular system designed to upgrade traditional downlights to advanced LED technology. This light engine offers selectable wattage and color temperature, ensuring optimal lighting customization.

Key Features and Benefits

• 12v aux for c-Max compatibility
• Wattage and CCT select Light Engines with Adjustable Beam Angles
• Multi-Mode dimming supporting Triac / ELV (at 120v) and 0-10V dimming (at 120-277V)
• Field Installable Emergency Battery Back Up Available
• Energy Star V1.0 qualified

Specifications

• Selectable Wattage: 12/16/20W
• Selectable CCT: 2700K/3000K/3500K/4000K/5000K
• CRI: ≥ 90
• L70 Lifetime: ≥ 50,000 hours
• Voltage: 120-277V
• Power Factor: ≥ 0.9
• ETL Listed & Classified
• Environment: Damp locations
• Warranty: 5 years

Common Uses

Ideal for retrofitting or new construction in architectural settings where energy efficiency and superior lighting quality are paramount.
